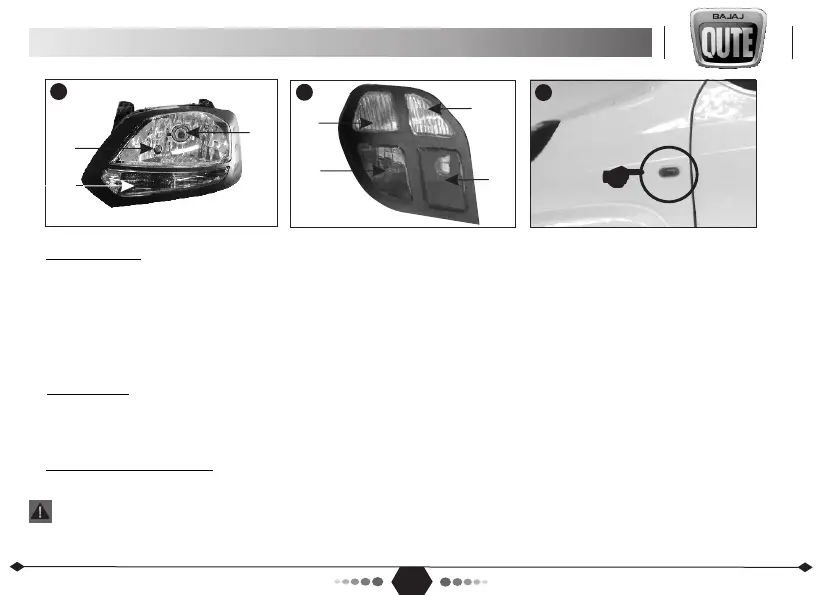

a. Head lamps:
Head lamps are clear lens type having multi focal reflector and are provided with halogen bulb with double
filament for providing illumination of the road.
It also incorporates side indicator lamp and a parking lamp.
1) High / Low Beam 2) Position / Parking Lamp
3) Front Direction Indicator
b. Tail lamps: The tail lamp assembly incorporates the
1) Tail / Brake Lamp 2) Turn Signal Indicator
3) Reverse Lamp 4) Reflex Reflector
c. Side Indicator Lamps: Corresponding side indicator blinks along with front & rear direction indicators
Warning:
Make sure all Headlight & Taillights are clean and working properly.
2
1
3
4
2
1
3
a
b
c
3A-6. LAMPS
*Accessories shown may not be a part of standard fitment.
