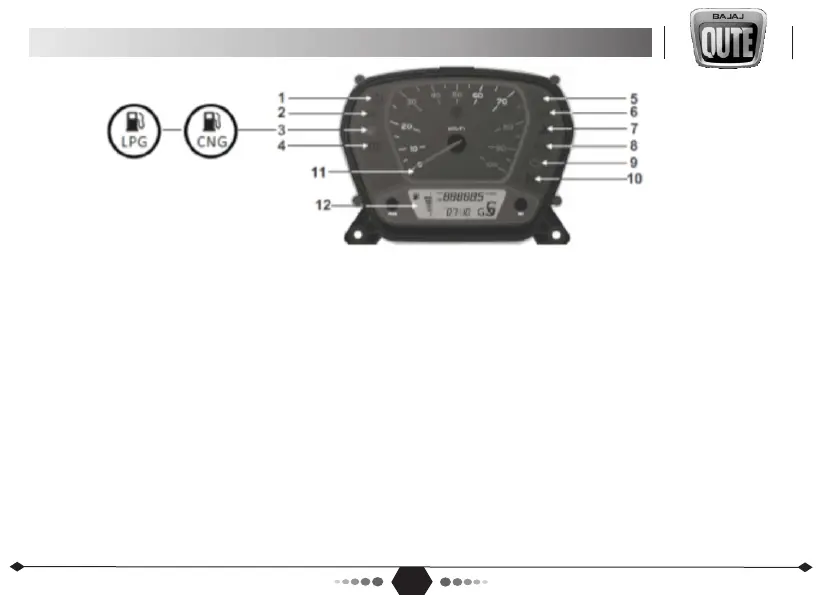

3A-1. INSTRUMENT CLUSTER
It is located on dashboard
1) LH turn indicator
2) High beam indicator
3) Fuel level indicator
4) Parking brake / Brake fluid check indicator
5) RH turn indicator
6) Low oil pressure indicator
7) Engine coolant High temperature indicator
8) Battery charging indicator
9) MIL indicator (Malfunction Indicator light)
10) Neutral indicator
11) a. Speedometer kmph
b. Speedometer mph
12) Odometer
*Accessories shown may not be a part of standard fitment.
