Bajaj QUTE User Manual

75

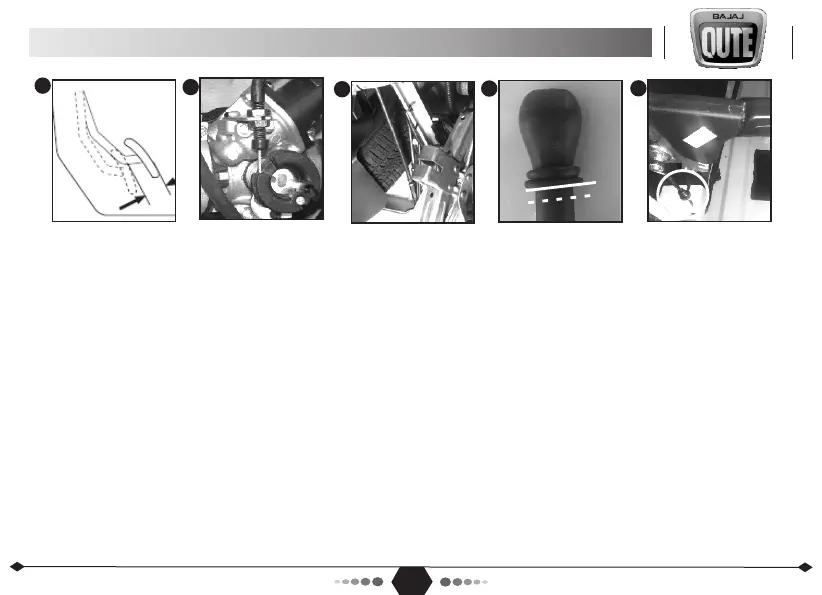

Free play & travel of Controls:
a. Brake Pedal Play (at pedal) : 10mm(Max)
b. Accelerator Pedal Play (at pedal) : 3~5mm (EU vehicle are equipped with ETB-Electronic Throttle
Body & hence no adjustment required).
c. Clutch Pedal play (at pedal) : 10~15mm
d. Gear Lever free Play (at engine) : 3~5mm
e. Clutch lever free play (at engine) : 1.5 to 2 mm
f. Reverse gear lever knob travel : 12mm
g. Parking brake Lever play : 2mm (Max)
a
b
d
f
e
5K. ADJUST FREE PLAY
*Accessories shown may not be a part of standard fitment.
