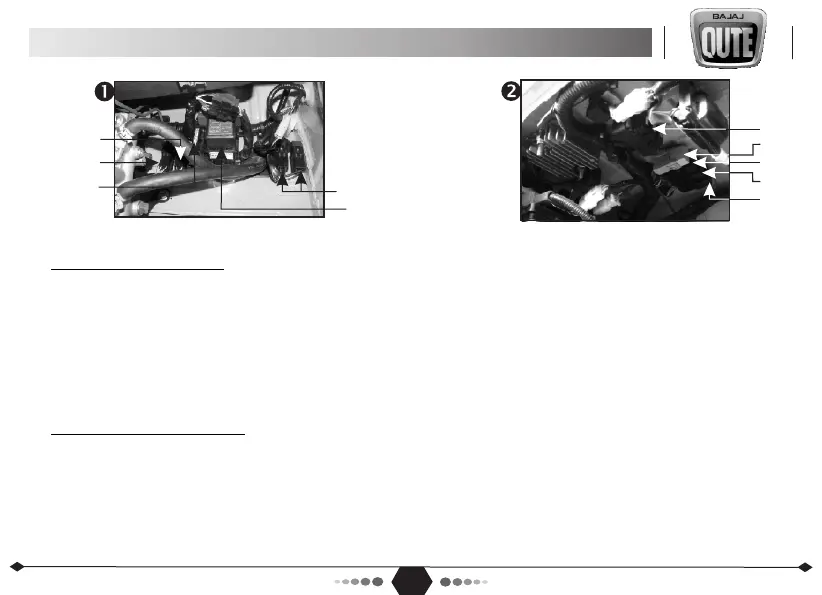

Fuse & relays are located in two locations,
1. Below dashboard:
a. Horn Relay
b. Parking Lamp Relay
c. Fuse wiper motor 15A
d. Head Lamp Relay
e. Hi/ Low beam
f. Fuse Box Assembly
2. Inside Engine cabin:
a. Main Fuse 40A
b. Aux Relay (With Grey case)
c. Fuel Pump Relay
d. Main Relay
e. Radiator Fan Relay
d,e
f
c
b
a
b
c
d
e
a
3A-7. FUSES & RELAYS
*Accessories shown may not be a part of standard fitment.
