78
0. 10A,15A – Spare fuses
1. 30A - Head Lamp
2. 15A - HT coil, Reverse Lamp, Blower, Aux
Relays ECU (Ignition Switch) Console
3. 15A - Indicator & stop Lamp, Washer pump,
Head Light relay, Vehicle speed & brake fluid
sensor
4. 15A - Horn, Indicator position, Console
illumination, Number plate & Cabin lamp
5. 15A - Fuel pump, Injector, Instrument cluster,
ECU (battery), Main relay, lambda sensor
6. 5A - Electromagnetic clutch
7. 15A - Wiper motor
8. 10A - Accessories
0. (10A,15A)
3. (15A)
2. (15A)
1. (30A)
4. (15A)
5. (15A)
6. (5A)
7.
8.
9.
10.
30A
5A
10A
15A

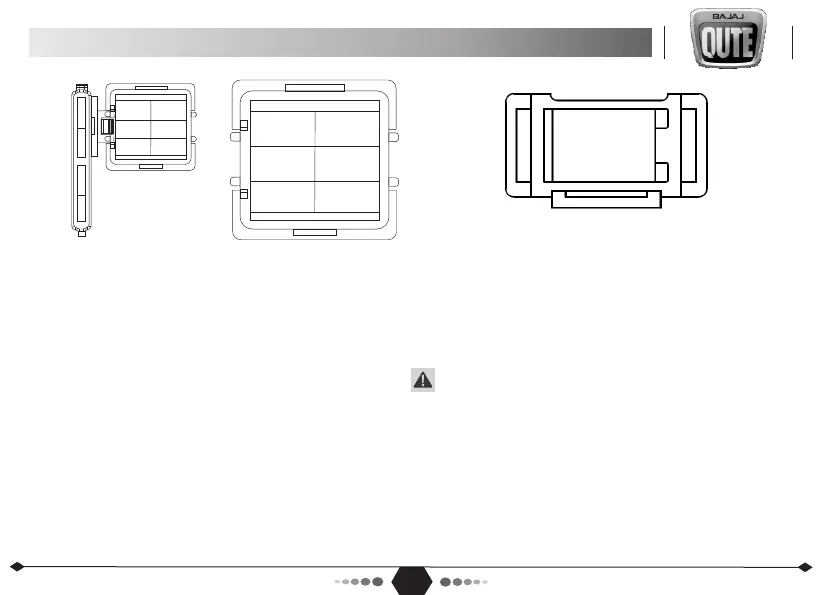

5M. FUSES
FUSE 40A
*Accessories shown may not be a part of standard fitment.
9. 5A - Spare fuse
10. 30A - Spare Fuse
• 40A - Main fuse – Ignition switch transil diode,
Regulator
Caution:
- Incorrect fuses overload the electrical system.
- Only use fuses of the required Ampere value.
- Do not bypass or repair fuses.
