7．EtherNet/IP Connection Procedure
21
8

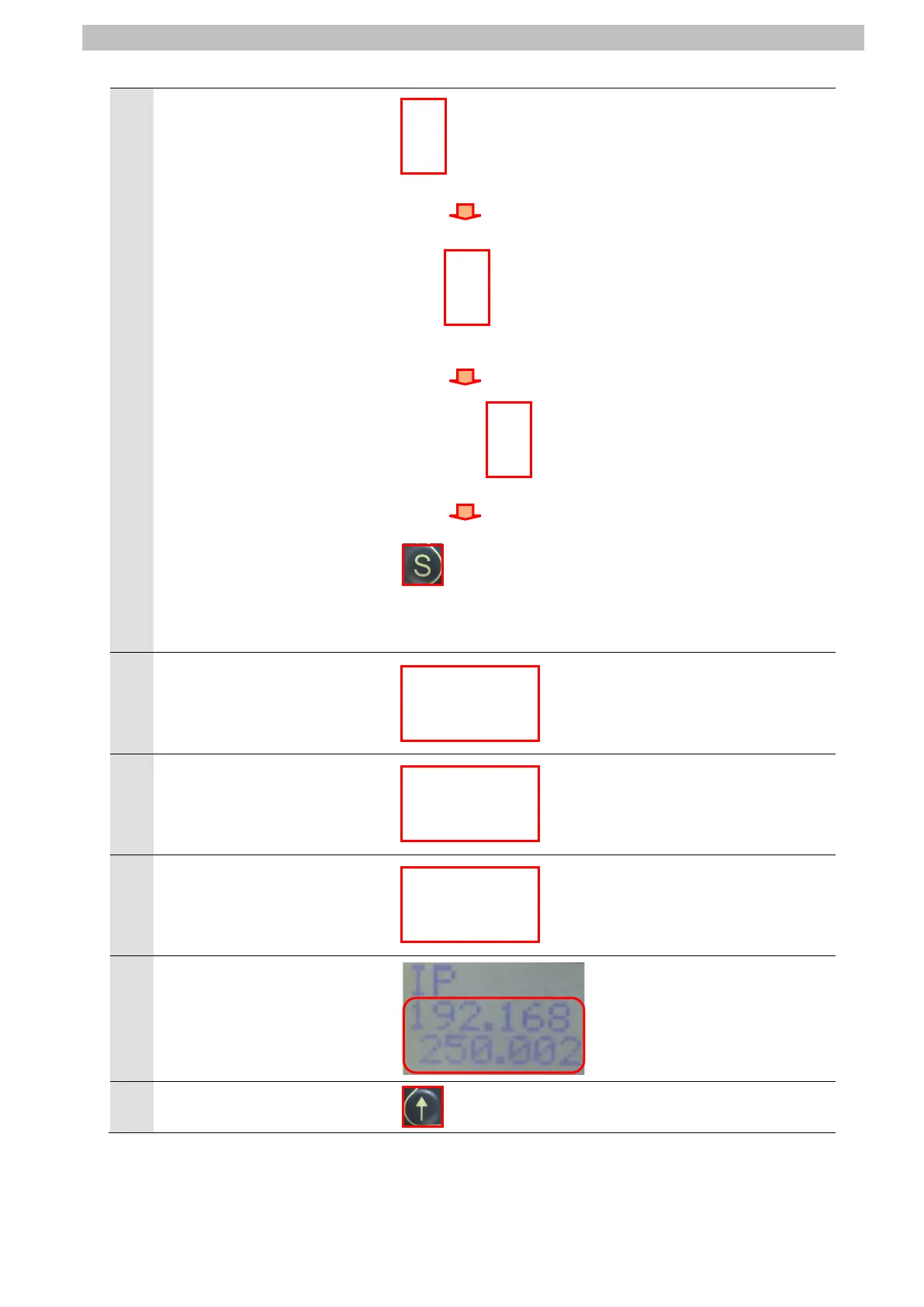

Set the 1st digit of the 4th octet
to 0 by briefly pressing the
Arrow key.
Briefly pressing the Set key
saves the entered value of the
1st digit.
Set the 2nd digit of the 4th
octet to 0 by briefly pressing
the Arrow key.
Briefly pressing the Set key
saves the entered value of the
2nd digit.
Set the last digit of the 4th
octet to 2 by briefly pressing
the Arrow key.
Briefly pressing the Set key
saves the entered value of the
last digit.
*The 4th octet of the IP
address is set to 002.
001
001
002
9
In the same way as step 8, set
the 3rd octet of the IP address
to 250.
250
10
In the same way as step 8, set
the 2nd octet of the IP address
to 168.
168
11
In the same way as step 8, set
the 1st octet of the IP address
to 192.
192
12
The IP address of Network
Module is displayed.
Check that 192.168.250.2 is
set as shown on the right.
13
Briefly press the Arrow key.
