7．EtherNet/IP Connection Procedure
32
12

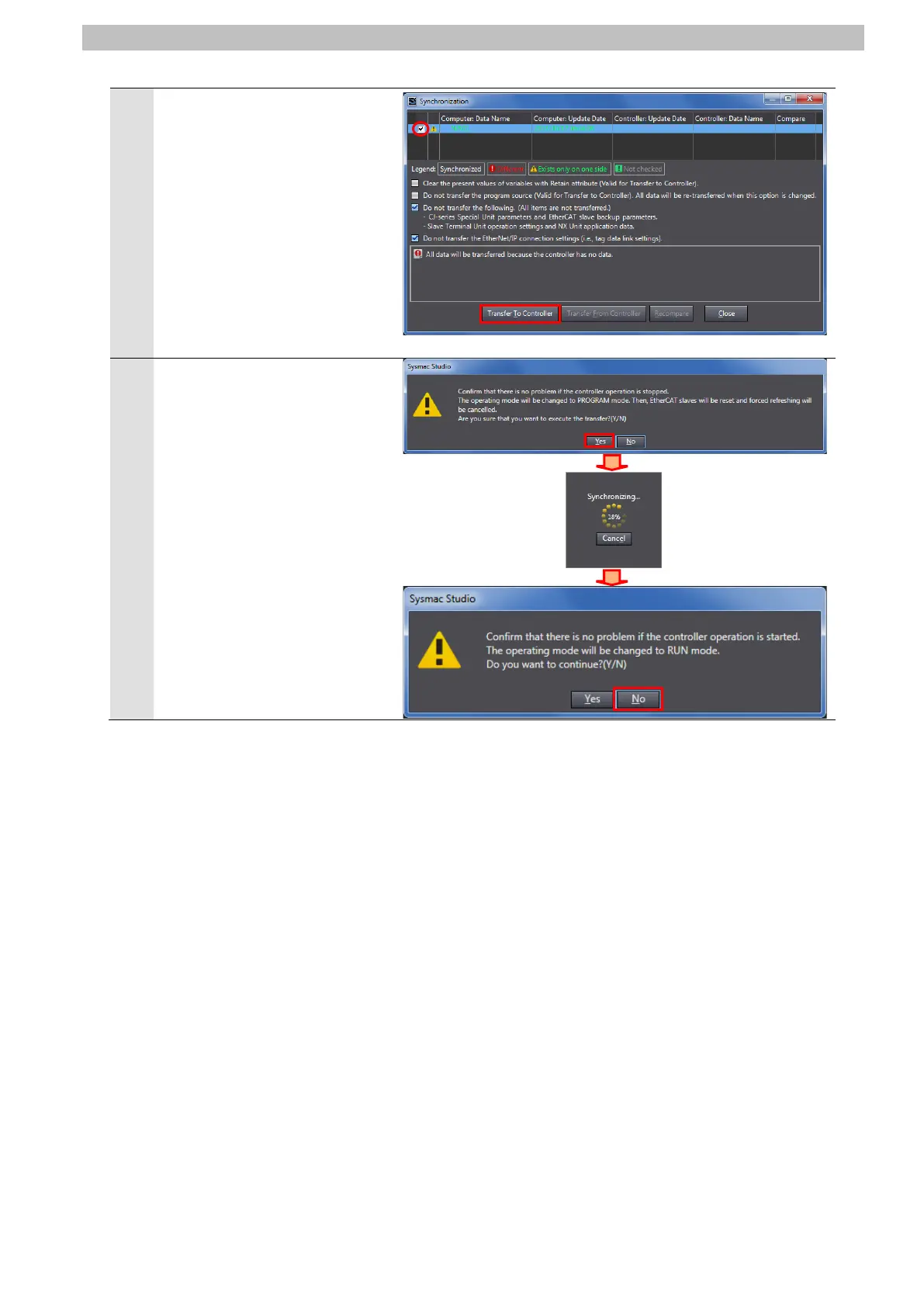

The Synchronization Dialog
Box is displayed.
Check that the data to transfer
(NJ501 shown on the right) is
selected.
Click Transfer To Controller.
*After executing "Transfer To
Controller", the Sysmac
Studio data is transferred to
Controller, and the data is
synchronized.
13
The dialog box on the right is
displayed. Confirm that there is
no problem, and click Yes.
A screen is displayed stating
"Synchronizing".
The dialog box on the right is
displayed. Confirm that there is
no problem, and click No
*Do not return to RUN mode.
