Balluff BNI PNT-502-102-Z015 - Display; General Display Features; Controls and Visualization; Display Information and Address Types

www.balluff.com
24
6 Display
General
6.1.
The display element of the BNI PNT-502-102-Z015 consists of two LEDs, two buttons and a
LCD display. A backlight is built in to increase readability in low-light environments and is
activated if you start going through the menu.
It is possible to display the station name. At delivery status, the letters “no name” show that
no station name of the module is set by the control system.
The following address types are implemented and reflect the current configuration of the
control system:
• IP address (IP)
• Subnet mask (SN)
• Gateway address (GW)
Each address type consists of 4 octets.
Additionally the display shows information about the device name, the hard- and software
version and the MAC-ID.

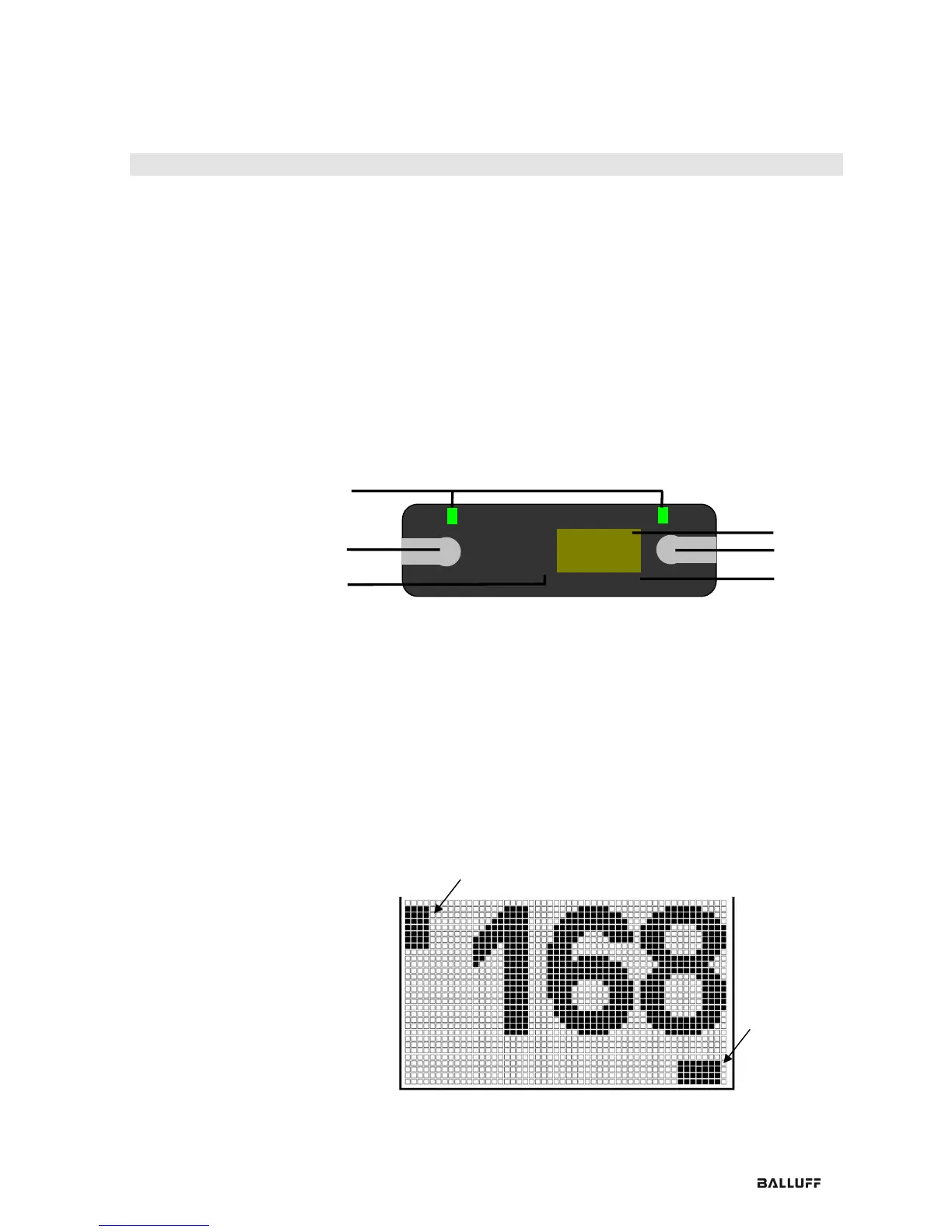

Controls and
6.2.
visualization
1 Display
2 Arrow-Key
3 Octett-Cursor
4 Address type cursor
5 Set-Key
6 LEDs
Arrow-Key: This button is used to go through the entries of a menu and is a short-time
keypress. The display shows the default screen after 10 seconds of inactivity.
Octett-Cursor: The default location of the Octett-Curser is position 0 indicating the lowest-
order octet.
Address type cursor: The default location of the Address type cursor is position IP.
Set-Key: This button is used to start the editing mode and save or confirm a change in the
configuration.
LEDs: The LEDs, configured as a single LED, can be set by the control system to indicate a
change in a state. Is is required to add the module “Display Leds” to the configuration of the
control system in order to utilize this functionality.
Display
6.3.
information
S
↑
IP
SN
GW
3 2 1 0
1
2
3
4
5
6
2
3
1
0
Cursor indicating the current type of address displayed
IP
SN
subnet
GW
gateway
Cursor
indicating the
octet of
address
displayed
