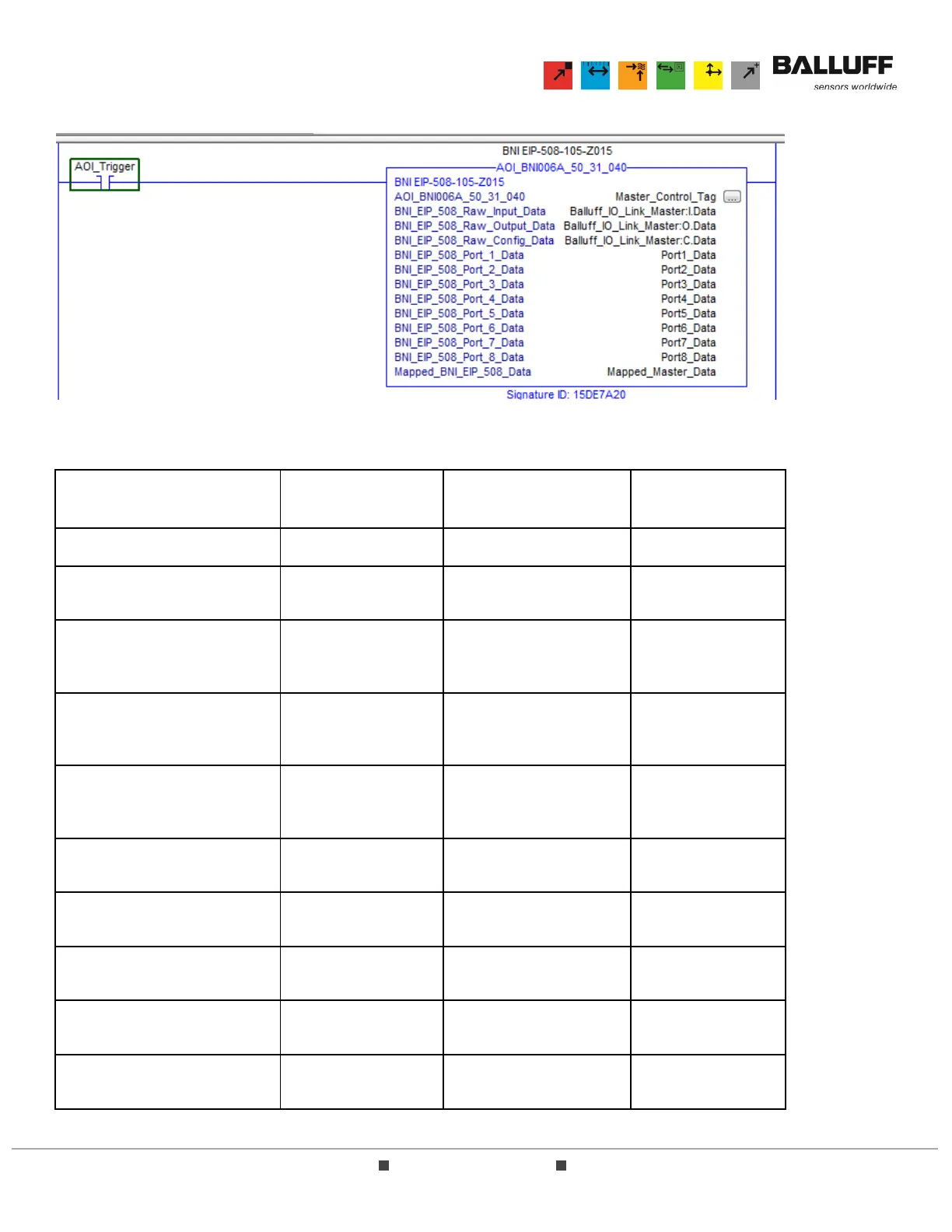

3.4.2 The AOI module can now be added to a rung of ladder:
3.4.3 All parameters must be defined with tags of valid data type as defined by the AOI module. The
user should create each Tag Name relevant to the user’s project.
Parameter Name Description Data Type
Tag Name
(User specific)
AOI_BNI006A_50_31_040
Unique Control Tag for
AOI Module
AOI_BNI006A_50_31_040 Master_Control_Tag
BNI_EIP_508_Raw_Input Data
392 byte array of raw
data from Hardware
Module Defined Tags
SINT[392]
Module_Name.I.Data
BNI_EIP_508_Raw_Output Data
262 byte array of raw
data from Hardware
Module Defined Tags
SINT[262]
Module_Name.I.Data
BNI_EIP_508_Raw_Config_Data
194 byte array of raw
datafrom Hardware
Module Defined Tags
SINT[194]
Module_Name.I.Data
BNI_EIP_508_Port_1_Data
All I/O Data Associated
with IO-Link Port 1
IO_Link_Port_Data Port1_Data
BNI_EIP_508_Port_2_Data
All I/O Data Associated
with IO-Link Port 2
IO_Link_Port_Data Port2_Data
BNI_EIP_508_Port_3_Data
All I/O Data Associated
with IO-Link Port 3
IO_Link_Port_Data Port3_Data
BNI_EIP_508_Port_4_Data
All I/O Data Associated
with IO-Link Port 4
IO_Link_Port_Data Port4_Data
BNI_EIP_508_Port_5_Data
All I/O Data Associated
with IO-Link Port 5
IO_Link_Port_Data Port5_Data
