7

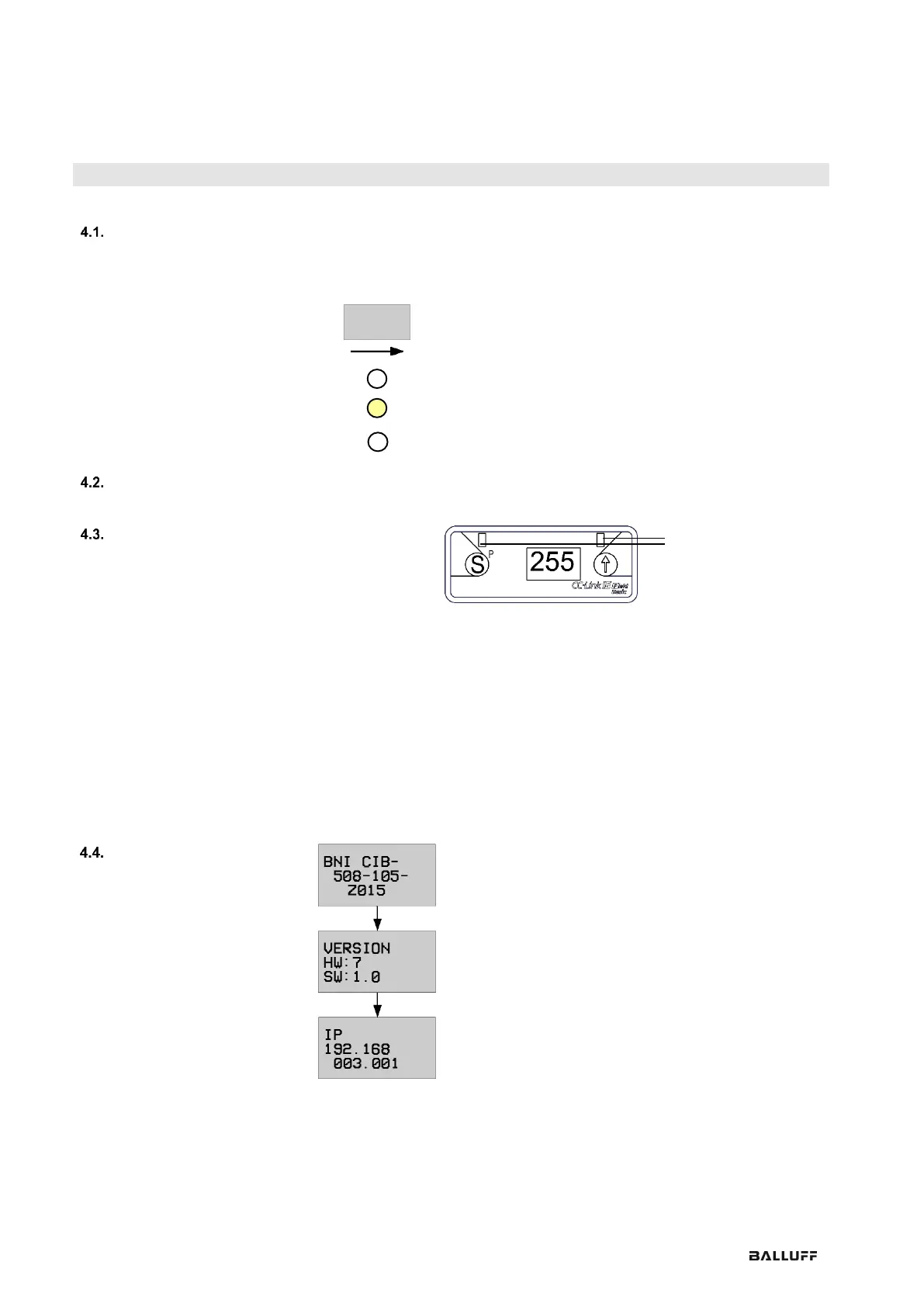

4 Display
General
The built-in display allows you to set the number of occupied stations directly on the module.
Additional information can also be displayed and functions carried out.
The flow charts below describe the display sequence:
Current status
Switch
Condition: Briefly press the Set key
Condition: Press and hold the Set key
(at least 3 seconds)
Condition: Briefly press the arrow key
Factory setting
Number of occupied stations: 2
Station address/IP address: 192.168.3.10
Control and
display
• Display LEDs: The two LEDs can be controlled by the cyclic CC-Link IE Field
Basic data. Green and/or red can be set.
• (S)et/(P)rogramming Key: This key is used to scroll through the main menu or, if
held down, to start editing mode. A change is confirmed by briefly pressing the key.
Edit mode can be locked and unlocked by a bit in the cyclic process data. Locking
is indicated by a key symbol.
• Arrow key: This key is used to go through the menu entries. The display shows
the standard screen after 10 seconds of inactivity.
• Display: When interacting using the keys, the respective menu point is displayed.
Inactivity causes the standard view to be shown and the set station number
displayed.
Start-up
Module name
Hard- and firmware version
Station address/IP address
S
S

LEDs
