4 Display

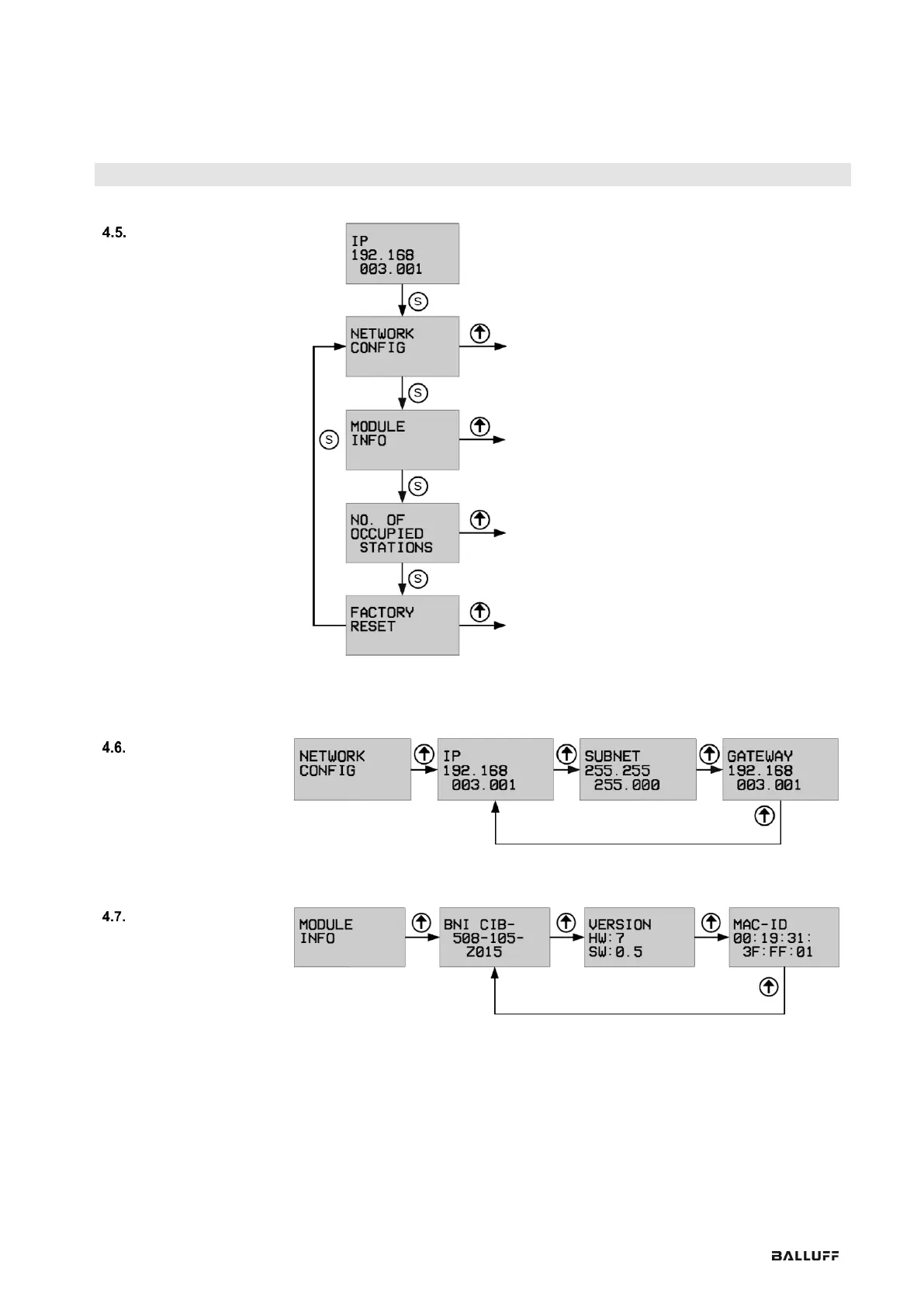

Main menu
Standard view:
Station address/IP address display
Menu: Network configuration
Menu: Module info
Menu: Number of occupied stations
Menu: Factory setting
• Press the Set key briefly to scroll through the main menu.
• Press the arrow key briefly to open the menu.
• After a period of inactivity of about 10 seconds the display automatically changes
back to standard view
Menu point:
Network config
• Press the arrow key briefly to scroll through the menu.
• The configured IP address, the subnet and the configured gateway are displayed
Menu point:
Module info
• Press the arrow key briefly to scroll through the menu.
