Balluff Netwo
rk Interface CC-Link IE
Field Basic
www.balluff.com
6
3

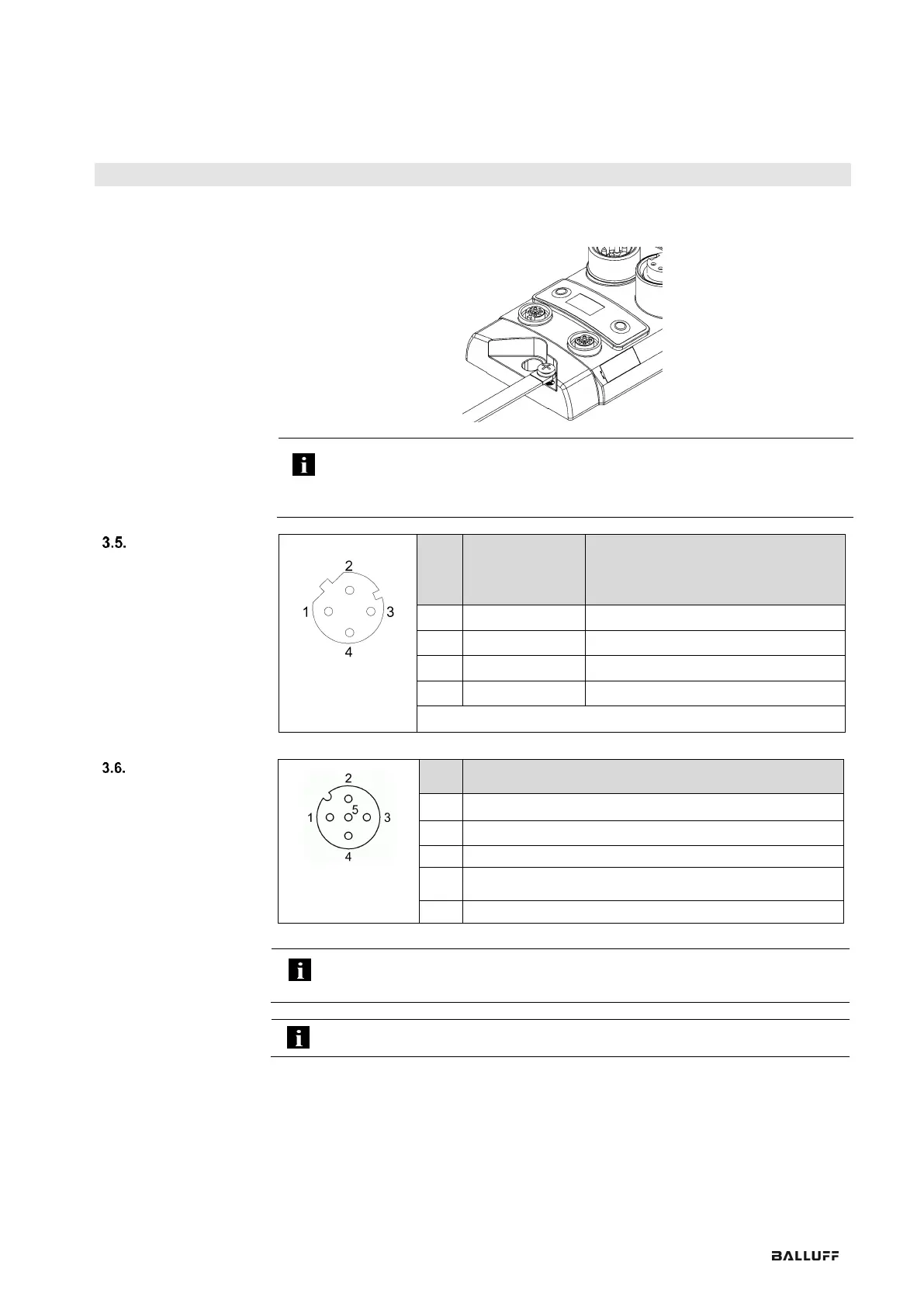

First steps
CC
-Link IE Field
Basic connection
M12
D-coded
female
Pin
Function
Description
1
Tx+
Transmit Data +
2
Rx+
Receive Data +
3
Tx
-
Transmit Data -
4
Rx
-
Receive Data -
Sensor/actuator
connection
M12
A-coded
female
Pin
Function
1
+24 V
2
Input / Output
3
0V
4
Input / Output / IO-Link
5
n.a.
Note
Unused ports must be provided with cover caps in order to ensure enclosure
rating IP67.
Note
The digital inputs conform to the input characteristics in EN 61131
-2, type 3
Function ground
Note
The FE-connection from the housing to the machine must have low impedance
and be as short as possible.
We recommend using the included ground strap for the FE connection.
8
10
Table of Contents
Default Chapter
3
Table of Contents
3
1 General
5
Structure of the Guide
5
Typographical Conventions
5
Enumerations
5
Actions
5
Syntax
5
Cross-References
5
Symbols
5
Abbreviations
5
Deviating Views
5
2 Safety
6
Intended Use
6
Installation and Startup
6
General Safety Notes
6
Resistance to Aggressive Substances
6
Dangerous Voltage
6
3 First Steps
7
Module Overview
7
Port
8
Mechanical Connection
8
Electrical Connection
8
Supply Voltage
8
Function Ground
9
CC-Link IE Field Basic Connection
9
Sensor/Actuator Connection
9
4 Display
10
General
10
Factory Setting
10
Control and Display
10
Start-Up
10
Main Menu
11
Menu Point: Network Config
11
Menu Point: Module Info
11
Menu Point: Number of Occupied Stations
12
Menu Point: Factory Settings
12
5 Integration
13
General
13
Network Parameters
13
Network Configuration Settings
14
CSP+-File (Network Configuration Settings)
15
6 CC-Link IE Field Basic
16
General
16
CC-Link IE Field Basic Network
16
Ethernet
16
CIB Module
16
Pin-Port Numbering and Addressing
17
State Machine
18
7 Cyclical Transmission
19
General
19
RX and RY
19
Details
21
Word Range Rwr and Rww
22
Details: Module Status Area
24
Process Data Representation (Byte Swap)
24
