Balluff BTL6-A/C/E/G500-M Series User Manual

www.balluff.com 13english

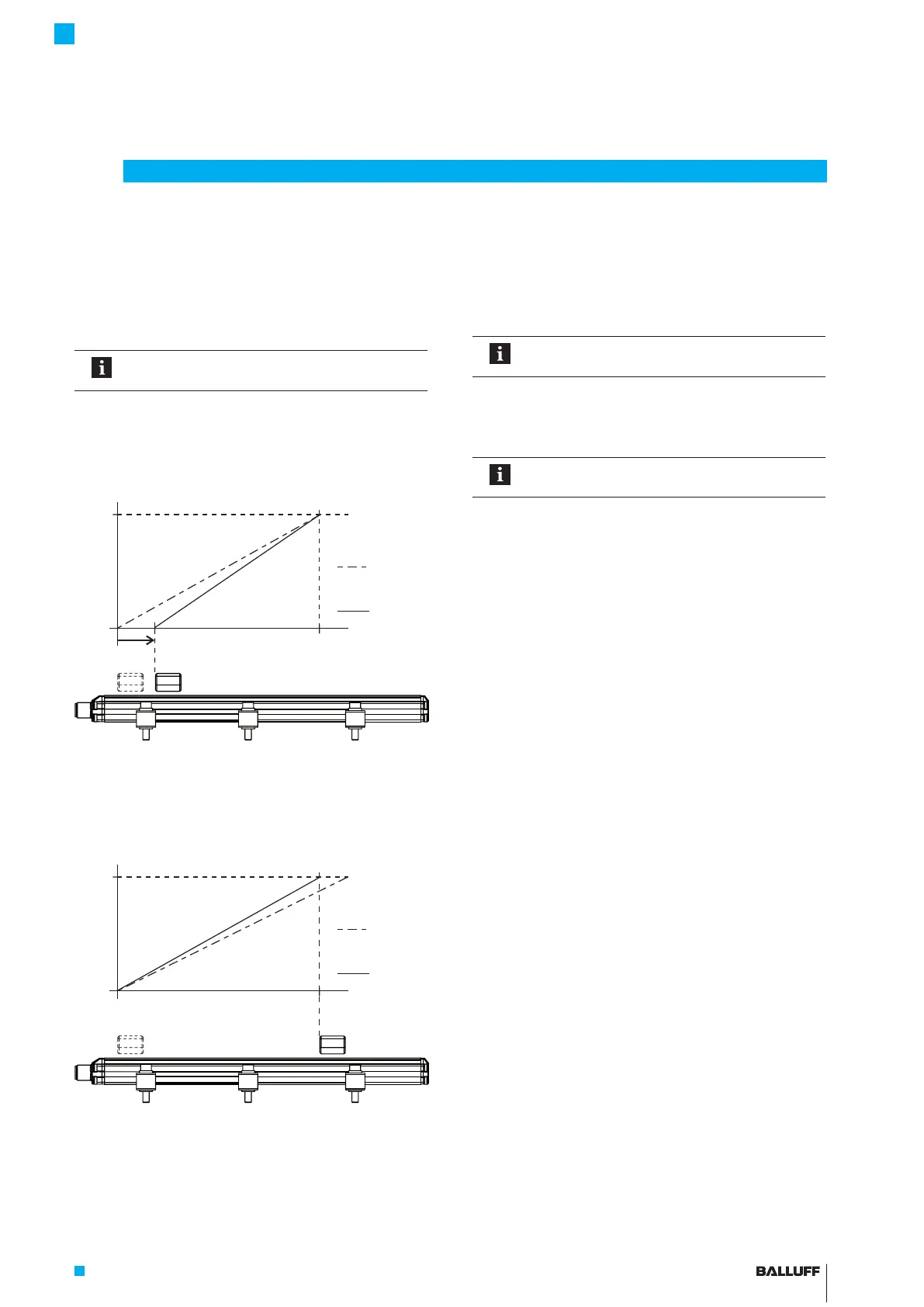

6.3 Calibration procedure overview
6.3.1 Teach-in
The factory set null point and end point is replaced by a
new null point and end point. The null point and end point
can be set separately, the output gradient changes.
The detailed procedure for teach-in is described
on page14.
Steps
► Move magnet to the new null position.
► Read new null point by activating the programming
inputs.
⇒ The current end point remains the same.
New null point
Before
After
Fig.6-2: Reading new null point
► Move magnet to the new end position.
► Read new end point by activating the programming
inputs.
⇒ The current null point remains the same.
New end point
Before
After
Fig.6-3: Reading new end point
6
Calibration procedure (continued)
6.3.2 Inverting
The gradient can be inverted by activating the
programming inputs.
During inverting, the output gradient is inverted. For
example, a rising output gradient is changed to a falling
gradient.
The detailed procedure for inverting is
described on page15.
6.3.3 Reset
Restoring the transducer to its factory settings.
The detailed procedure for the reset is
described on page16.
BTL6-A/C/E/G500-M _ _ _ _ -PF-S115
Micropulse Transducer in a Flat Profile Housing
