Balluff BTL6-A/C/E/G500-M Series User Manual

www.balluff.com 15english
8

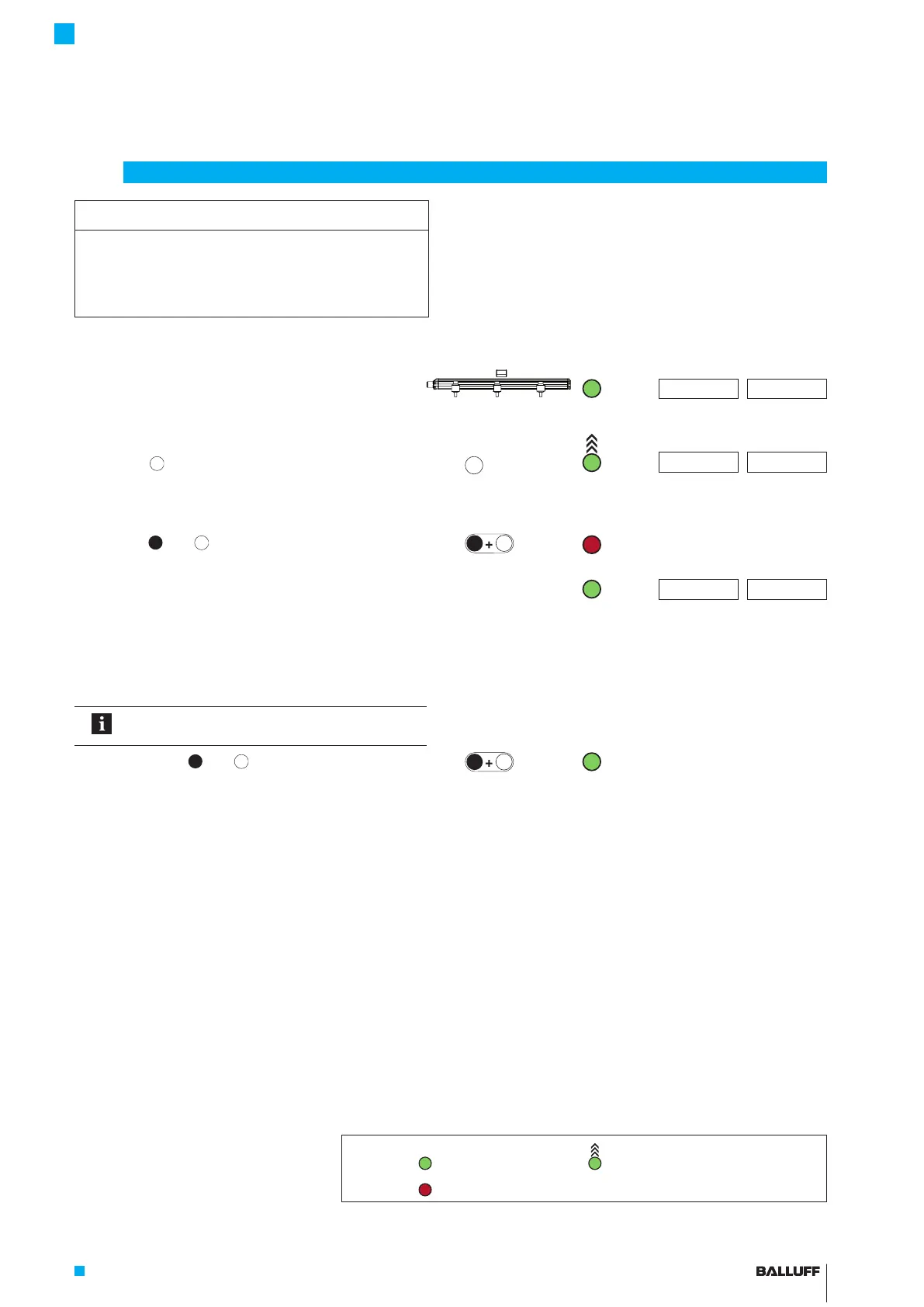

Inverting
NOTICE!
Interference in function
Inverting while the system is running may result in
malfunctions.
► Stop the system before inverting.
LED display Displayed values (example)
LED At 0…10 V At 4…20 mA
Initial situation:
– Transducer with magnet within measuring range
5.39 V 9.15 mA
1. Activate inverting
► Activate
b
for at least 4s.
>4s
b
5.39 V 9.15 mA
2. Invert gradient
► Activate
a
and
b
simultaneously for at least 4s.
>4s
a
b
After activation:
5.61 V 14.85 mA
⇒ The output gradient is inverted.
⇒ Current position value is displayed.
⇒ Inverting is deactivated.
3. Abort inverting
Inverting can be aborted without any changes
being saved after the Activate inverting step.
► Briefly activate
a
and
b
simultaneously (<1s).
<1s
a
b
⇒ Current position value is displayed.
LED legend: LED green LED flashing green
LED red
BTL6-A/C/E/G500-M _ _ _ _ -PF-S115
Micropulse Transducer in a Flat Profile Housing
