14 english
7

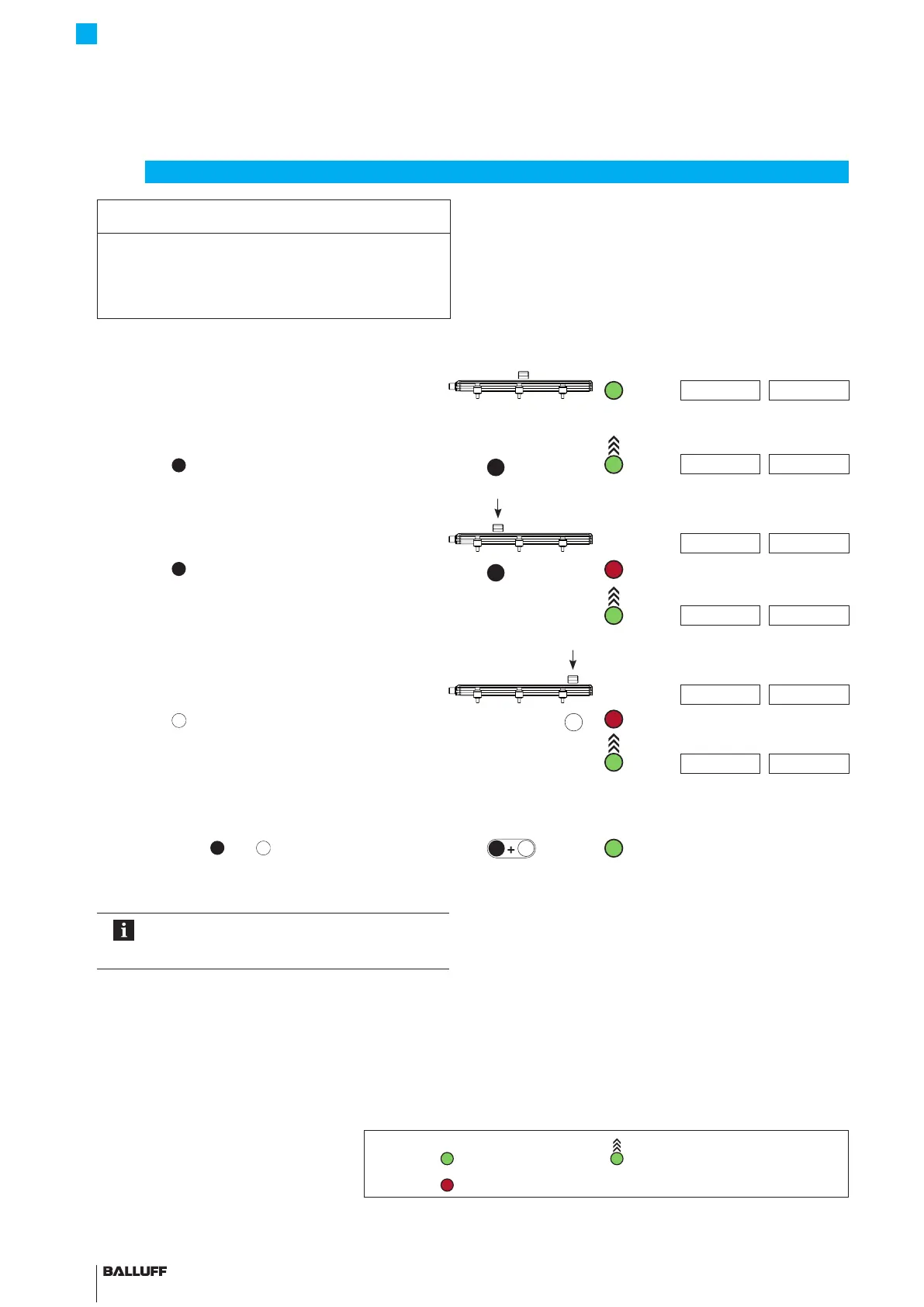

Teach-in
NOTICE!
Interference in function
Teach-in while the system is running may result in
malfunctions.
► Stop the system before performing teach-in.
LED display Displayed values (example)
LED At 0…10 V At 4…20 mA
Initial situation:
– Transducer with magnet within measuring range
5.39 V 9.15 mA
1. Activate teach-in
► Activate
a
for at least 4s.
>4s
a
5.39 V 9.15 mA
2. Set null point
► Bring magnet to the new null point.
1.04 V 4.82 mA
► Activate
a
for at least 2s.
> 2s
a
⇒ The new null point is set after activation.
0.00 V 4.00 mA
3. Set end point
► Bring magnet to the new end point.
9.89 V 19.13 mA
► Activate
b
for at least 2s.
>2s
b
⇒ The new end point is set after activation.
10.00 V 20.00 mA
4. End teach-in
► Briefly activate
a
and
b
simultaneously (<1s).
<1s
a
b
⇒ Current position value is displayed.
Any of the individual steps for settings can be
selected. The teach-in process can be ended at
any time.
LED legend: LED green LED flashing green
LED red
BTL6-A/C/E/G500-M _ _ _ _ -PF-S115
Micropulse Transducer in a Flat Profile Housing
