20
The display will show OFF if the alarm is disabled or the
alarm value when enabled. The value will be displayed in
metres, feet or fathoms depending on the selected depth
units.
When the alarm condition is met the unit will sound its'
internal alarm buzzer and flash DEPTH METRES. Silence
the alarm by pressing any key. The alarm information is
broadcast to all other Network units via the system network
cables, these will also sound their alarms and flash their
displays, except Network WIND and Network TACK which
do not have alarms. See NETWORK ALARMS at the end of
this manual.

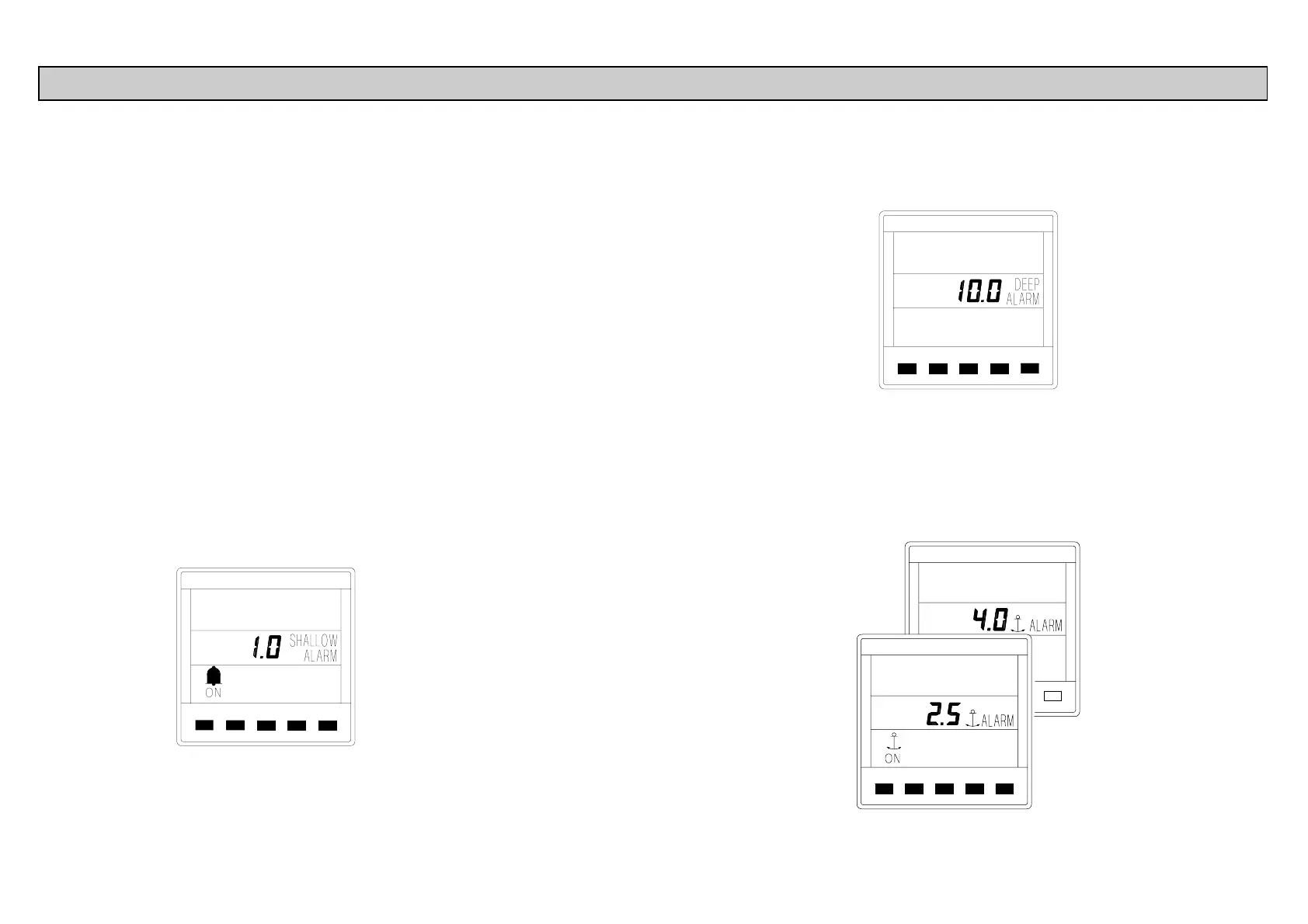

Shallow alarm.
Factory set to 1.0m, (3.2ft, 0.5 fathoms).
Adjustable range 0 - 180m, 0 - 590ft, 0 - 98.4 fa.
Deep alarm.
Factory set to 10.0m, (32.8ft, 5.4 fathoms).
Adjustable range 0 - 180m, 0 - 590 ft, 0 - 98.4 fa.
Anchor alarm
Factory set Shallow 0.5m Deep 1.0m,
(1.6/3.2ft, 0.2/.5 fathoms).
Adjustable range 0 - 180m, 0 - 590 ft, 0 - 98.4 fa.
DEPTH ALARMS
