Bandit 20XP - Page 101

Bandit
97Copyright 12/17
MODEL 20XP
LOCATION PART NUMBER DESCRIPTION
Anvil Bolt Torque: 75 ft.-lbs. (102 Nm)

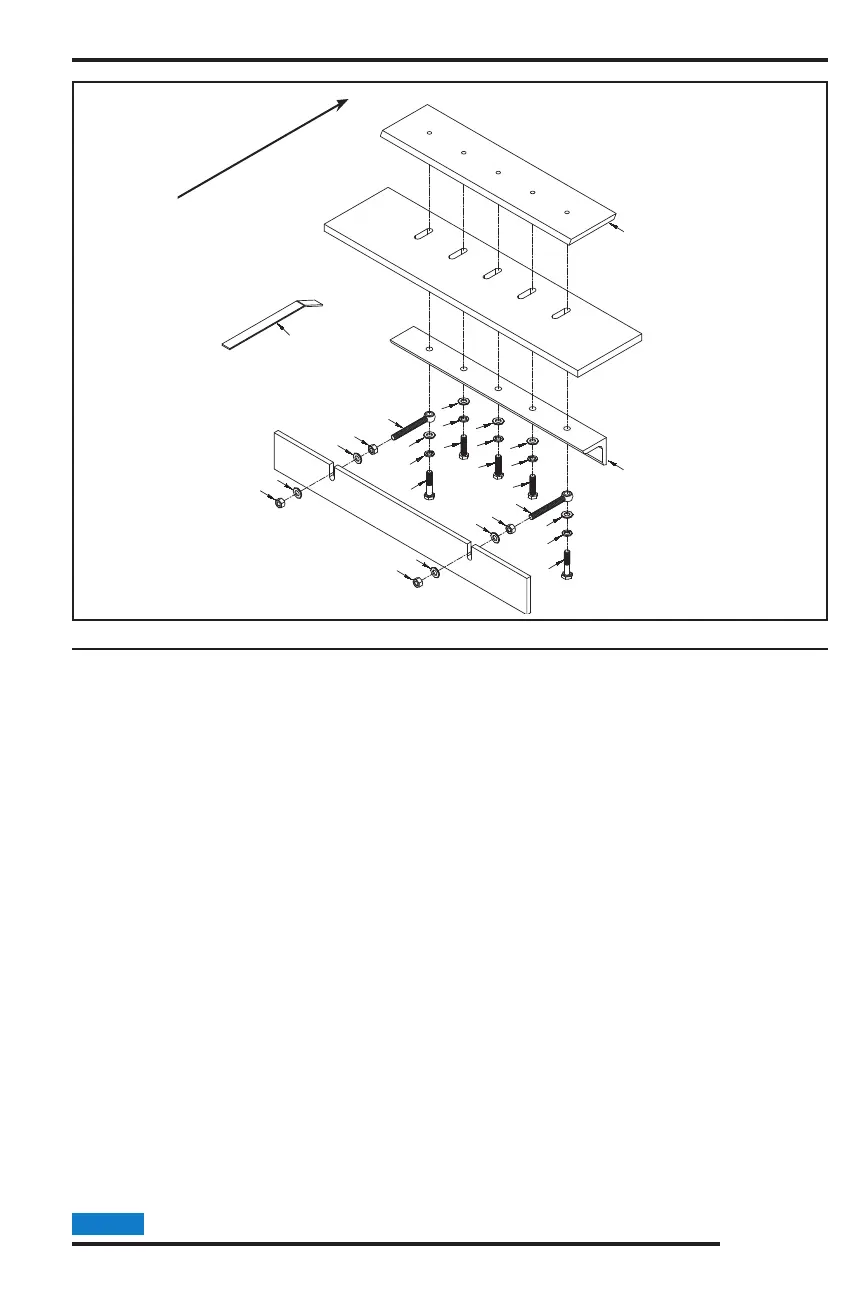

ANVIL HARDWARE
Parts may not be exactly as shown.NOTICE
FEED
DIRECTION
8
4
4
8
3
8
4
4
8
3
4
5
6
5
7
2
1
9
4
5
7
4
5
7
4
4
5
6
1. a. 937-300159 Anvil Only
b. 937-300159A “AR” Anvil Only
2. 937-300161 Anvil Clamp Plate
3. a. 900-4907-91 Anvil Eye Bolt - 1/2”-13NC x 4 1/2” (Current)
b. 900-4902-73 Anvil Eye Bolt - 1/2”-13NC x 5 1/2” (Prior)
4. 900-4909-18 1/2” Mill Carb Washer
5. 900-4902-11 1/2” Lock Washer
6. 900-4903-17 1/2”-13NC x 2 1/2” Hex Head Bolt
7. 900-4900-74 1/2”-13NC x 2” Hex Head Bolt
8. 900-4906-82 1/2”-13NC Hex Nut
9. 981-1006-25 Anvil Gauge
10. 904-0003-90 Anvil Hardware Kit Only (Includes 3 - 8)
11. 937-200031 Anvil & Hardware Kit (Includes 1a & 3 - 8)
