Bandit 20XP - CHIPPER KNIFE & HARDWARE

Bandit
96
Copyright 12/17

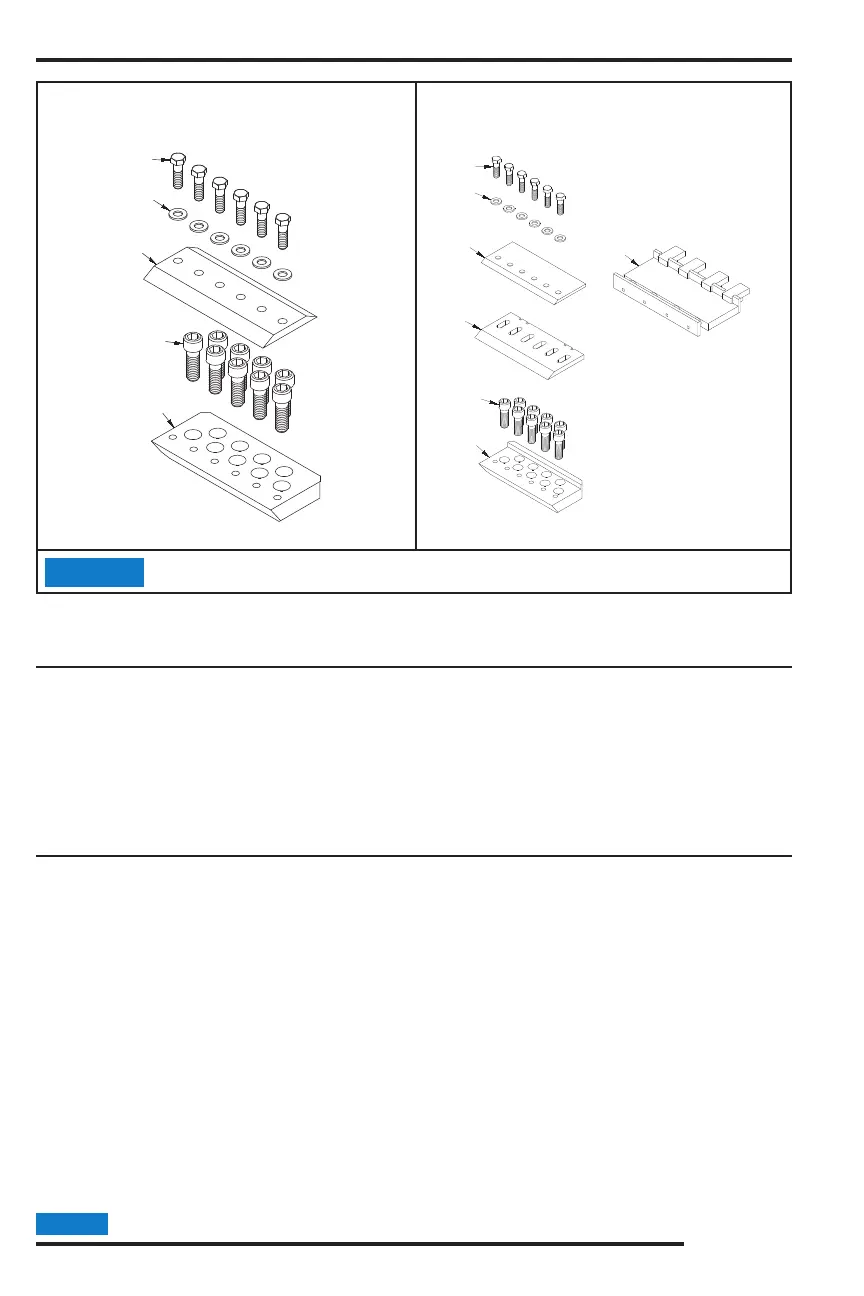

MODEL 20XP CHIPPER KNIFE & HARDWARE
Parts may not be exactly as shown.NOTICE
KNIFE BOLTS MUST BE INSTALLED THROUGH KNIFE AS SHOWN.
NOTICE
Torque Double Edge Knife Bolt to 180 ft.-lbs. (245 Nm)
Torque Babbitt Knife Bolt to 210 ft.-lbs. (285 Nm)
Torque Knife Holder Bolt to 250 ft.-lbs. (339 Nm)
LOCATION PART NUMBER DESCRIPTION
BABBITT STYLE KNIFEDOUBLE EDGE STYLE KNIFE
DOUBLE EDGE STYLE KNIFE
BABBITT STYLE KNIFE
LOCATION PART NUMBER DESCRIPTION
1. 938-301104 Knife Holder
2. 900-4914-30 3/4”-10NC x 2 1/4” Socket Head Cap Screw
3. 900-9904-38 Double Edge Chipper Knife
4. 900-4901-32 5/8” Mill Carb Washer
5. 900-4913-99 5/8”-18NF x 2” Knife Bolt
6. 938-3013-36 Knife Holder - Babbitt Style Knife
7. 900-4914-30 3/4”-10NC x 2 1/4” Socket Head Cap Screw
8. 900-9906-73 Babbitt Style Chipper Knife
9. 938-3013-37 Top Clamp
10. 900-4901-32 5/8” Mill Carb Washer
11. 900-4914-27 5/8”-18NF x 2 1/4” Knife Bolt
12. 959-1000-02 Knife Gauge
13. 900-9906-90 Ladle (Not Shown)
14. 900-9900-60 1/2 Ball of Babbitt (Not Shown)
10
11
12
9
8
1
2
3
4
5
7
6
10
11
12
9
8
1
2
3
4
5
7
6
