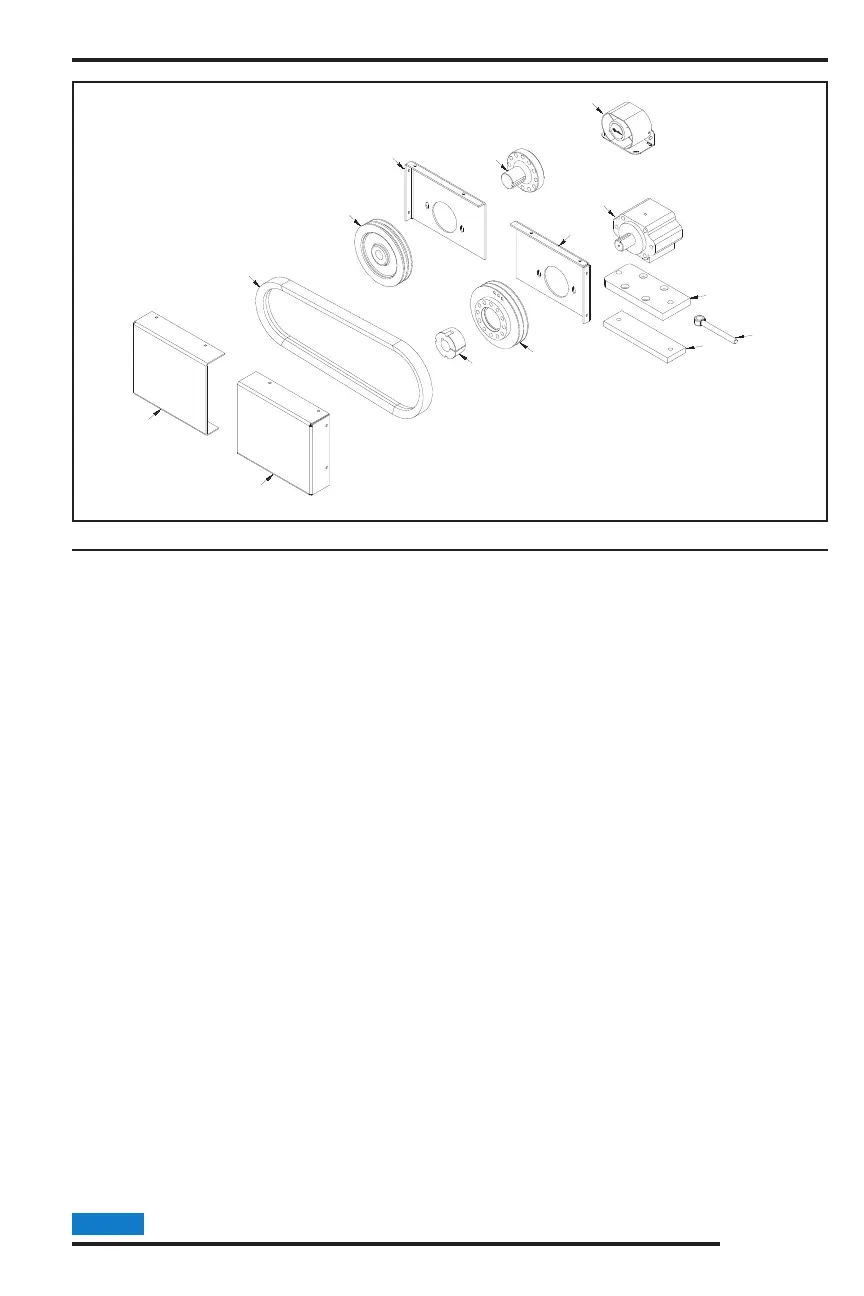

MODEL 20XP ENGINE COMPONENTS
LOCATION PART NUMBER DESCRIPTION
Parts may not be exactly as shown.NOTICE
** Components vary with engines order by machine S/N or physical description.
3
1
4
7
9
14
10
11
2
12
13
8
6
5
1. 955-3006-91 Sheave Guard Cover
2. 955-1010-86 Sheave Guard Cover
3. ** Pump Belt
4. ** Engine Sheave
5. ** Pump Bushing
6. ** Pump Sheave
7. 955-1011-25 Sheave Guard Mount
8. 955-3006-92 Sheave Guard Mount
9. ** Stub Shaft For Engine
10. 900-3954-49 Pump Bearing Block
11. 978-300129 Pump Mount Slide
12. 900-4902-75 Pump Belt Tension Adjuster
13. a. 978-300126 Pump Mount Plate
b. 955-2002-04 Pump Mount Assembly (Includes 11 - 13)
14. 900-2907-52 Back-Up Beeper
15. 900-2914-81 Main Circuit Breaker (Not Shown)
