Bandit 20XP - Discharge Components

Bandit
99Copyright 12/17
MODEL 20XP
LOCATION PART NUMBER DESCRIPTION

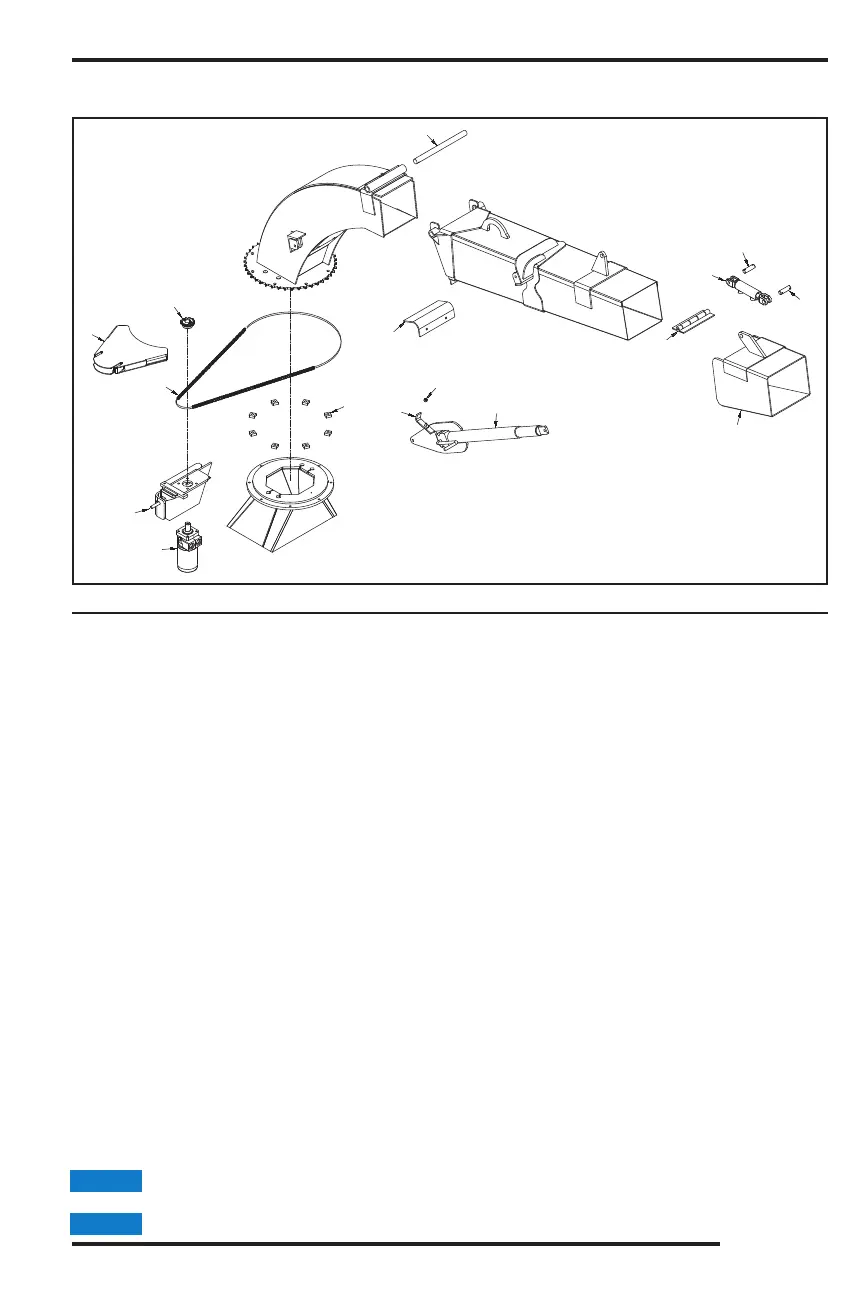

DISCHARGE COMPONENTS
STANDARD DISCHARGE
Parts may not be exactly as shown.NOTICE
Nuts, bolts, washers, and all other components can be ordered by physical description.NOTICE
1. 900-3921-57 Discharge Swivel Hydraulic Motor
2. a. 920-2002-33 Hydraulic Swivel Motor Mount
b. 920-2002-34 Hydraulic Swivel Mount
c. 937-1005-35 Chain Guard Mount
3. 937-200061 Hydraulic Swivel Chain Guard
4. a. 900-1901-20 #50 Roller Chain
b. 900-1901-18 Half Link- Chain (Not Shown)
c. 900-1901-19 Master Link - Chain (Not Shown)
5. 900-1915-71 Sprocket For Hydraulic Motor
6. 980-0137-35 Spacer Block
7. 980-300209 Pivot Pin
8. 980-0126-12 Rubber Guard
9. 955-300434 Handle Lock
10. 900-4906-60 3/8”-16NC Hex Bolt
11. 980-0510-86 Hand Crank Discharge Jack
12. 980-0101-59 Discharge Flipper Hinge
13. 937-0501-63 Discharge Flipper Assembly
14. 900-3928-16 Hydraulic Flipper Cylinder
15. 900-3930-71 Flipper Cylinder Lug Pin
15
10
6
8
5
3
1
13
12
11
2
4
9
7
14
15
