MODEL 20XP CONTROLS
CONTROLS
Follow the daily start-up and maintenance check list before starting the machine. Before starting the engine
make sure that the clutch is not engaged. Make sure the chipper hood engine disable plug is installed properly.
Turn the ignition switch to the ON position. This will turn on the electric fuel pump and the rest of the electrical
system. Then turn the ignition switch all the way to the right and hold until the engine starts.
Some engine have a pressure override switch wired into their system. In this case, depress the pressure
override button and turn the ignition switch all the way to the right, now hold both until the engine starts. Once
there is oil pressure the override button may be released.

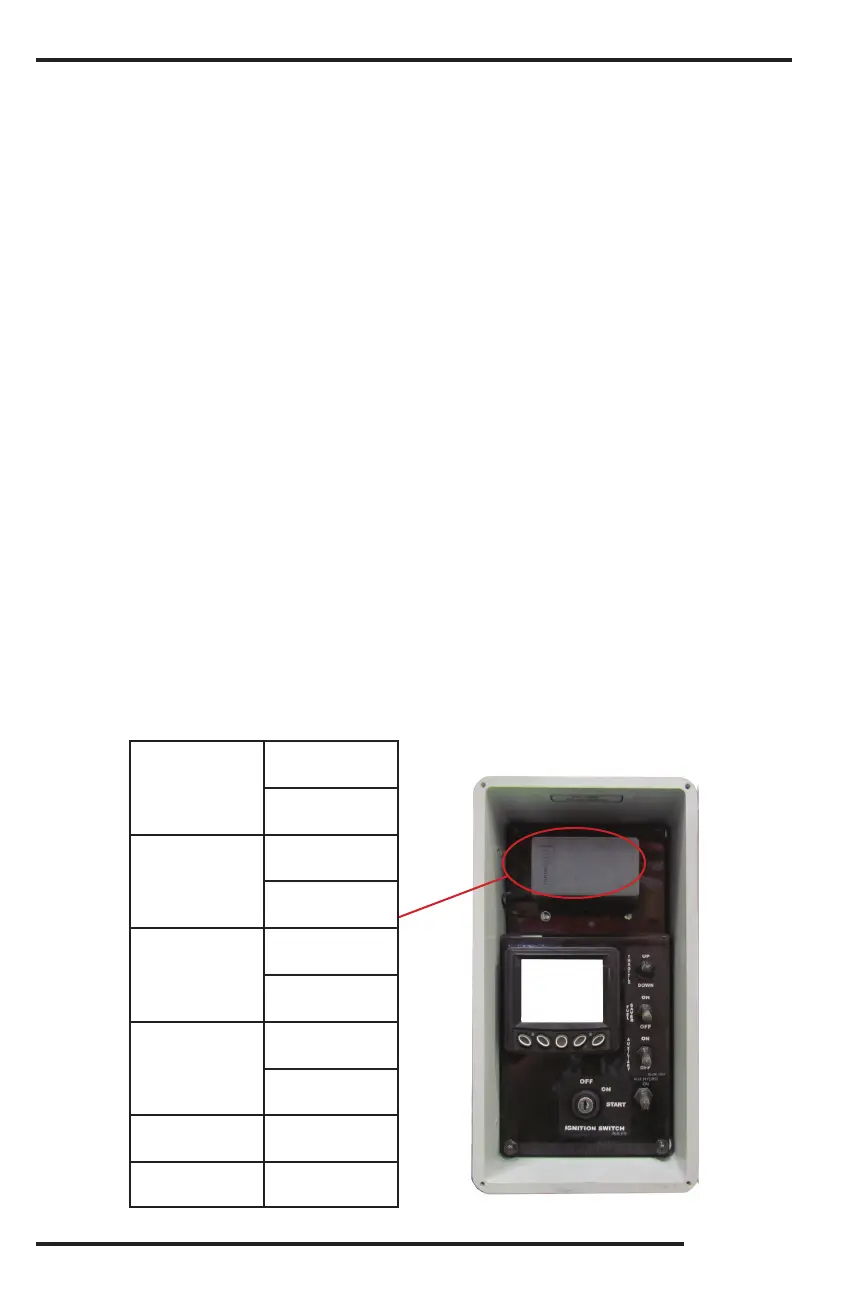

STARTING THE MACHINE
10
9
8
7
6
5
4
3
2
1
DISPLAY 3A
FEED
FORWARD
RELAY
FEED
REVERSE
RELAY
SPARE 15A
ENGINE
START
RELAY
ENGINE
RUN
RELAY
TOGGLE
SWITCHES
3A
VBB 1 15A
VBB 2 15A
VBB S 3A
KEY 3A
FEED 10A
UTILITY 3A
310 15A
311 15A
RADIO 3A
REMOTE STARTING PROCEDURE
1. Follow the daily start-up and maintenance check list before starting the machine.
2. Put the mode switch on the start panel in the radio/tether position.
3. Turn the ignition key to the ON position.
4. If transmitter has toggle e-stop, switch to the RUN position; if the transmitter has twist e-stop, twist and
release to the up position.
5. Turn the transmitter on. If the transmitter is a push button style power button, hold the button down
until the green and red lights come on and then release. If the transmitter is a toggle switch style power
button, move the toggle switch to the ON position.
6. The engine is ready to be started.
NOTE: To turn the transmitter o󰀨: If the transmitter is a push button style power button, hold the button down
until the green and red lights alternate coming on and both go out or if the transmitter is a toggle switch style
power button, move the toggle switch to the OFF position.
