MODEL 20XP CONTROLS
CONTROL OPERATING PROCEDURES
Feed Switch:
The feed switch operates the feedwheels and conveyor rotation. To make the feedwheels and conveyor
operate so they are pulling material into the machine, push the switch away from the operator. To make the
feedwheels and conveyor operate so it is pushing material out of the machine, pull and hold the switch towards
the operator. When the switch is let go from the reverse position, the feedwheels and conveyor will stop. To
stop the feedwheels and conveyor, pull the switch towards the operator to the center position.
Engine Stop Switch:
The engine stop button cuts o the power. The engine will roll over, but will not start if the switch is in the
engine stop position.
Throttle Switch:
To raise the engine rpm, push and hold the switch away from the operator until the desired rpm is reached.
To lower the engine rpm, pull and hold the switch towards the operator until the desired rpm is reached.
Track Speed Switch:
To put the tracks in slow speed, push the switch away from the operator. To put the tracks in high speed,
pull the switch towards the operator.
Left Track Forward / Reverse:
If the paddle is pushed and held away from the operator, the left track will move forward. If the paddle is
pulled and held towards the operator, the left track will move in reverse.
Flipper Out / In:
If the paddle is pushed and held away from the operator, the ipper will move out. If the paddle is pulled
and held towards the operator, the ipper will move in.
Yoke Up:
If the paddle is pushed and held away from the operator, the yoke will raise. When the paddle is let go, the
yoke will fall down.
Discharge Clockwise / Counter-Clockwise:
If the paddle is pushed and held away from the operator, the discharge will swivel clockwise. If the paddle
is pulled and held towards the operator, the discharge will swivel counter-clockwise.
Radio Remote Transmitter Batteries:
The radio remote transmitter requires a rechargeable battery pack. If the battery pack goes dead in the
radio remote transmitter, the engine will shut down.
Right Track Forward / Reverse:
If the paddle is pushed and held away from the operator, the right track will move forward. If the paddle is
pulled and held towards the operator, the right track will move in reverse.

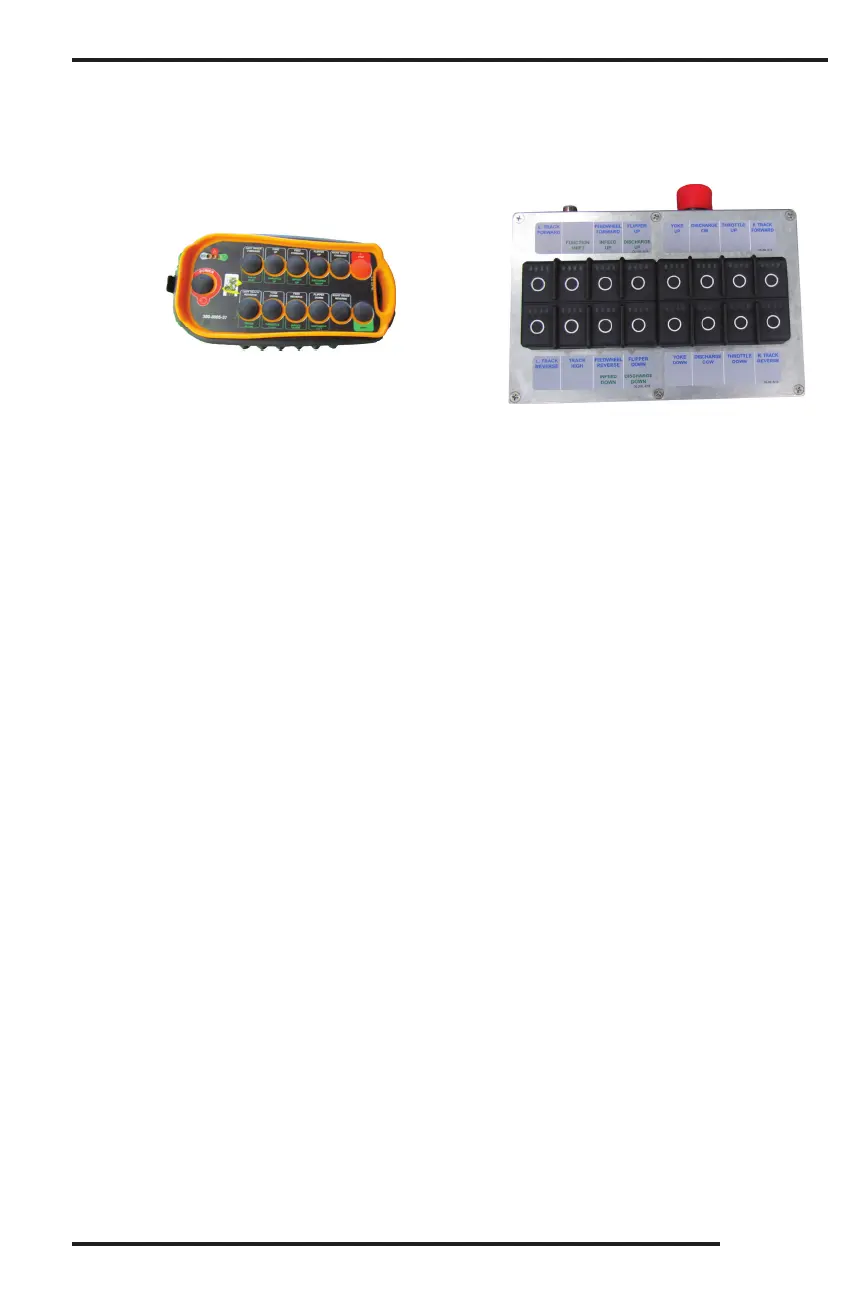

TETHER CONTROLRADIO REMOTE TRANSMITTER
