Flow Control Valves (If Equipped):
Only use the adjustable ow control when chipping large diameter trees. Do not leave the ow control
partially open for long periods of time. This will cause excessive heat to the hydraulic system! Excessive heat
will cause low feedwheel power and premature failure of all hydraulic components. Always operate system
at full oil ow unless chipping large diameter trees.
Tongue Jack Control Valve (If Equipped):
NOTE: Remove the lock pin BEFORE operating this function.
The tongue jack control valve operates the tongue jack cylinder. To raise the front of the machine, push the
control handle down towards the machine. To lower the front of the machine, pull the control handle towards
the operator, away from the machine. The tongue jack control valve is the o󰀨 position in the center position.
Rear Stabilizer Control Valve (If Equipped):
NOTE: Remove the lock pin BEFORE operating this function.
The rear stabilizer control valve operates the rear stabilizer cylinders, there will be one valve on the curbside
of the machine near the beltshield. To lower the rear stabilizer, pull the control handle toward the operator,
away from the machine. To lift the rear stabilizer, push the control handle towards the machine, towards the
machine. The rear stabilizer control valve is the o󰀨 position in the center position.
Tether Jack:
If using the tether controls, the cord must be plugged in here located between the exhaust and the clutch
of the machine.
CONTROLS
CONTROL OPERATING PROCEDURES

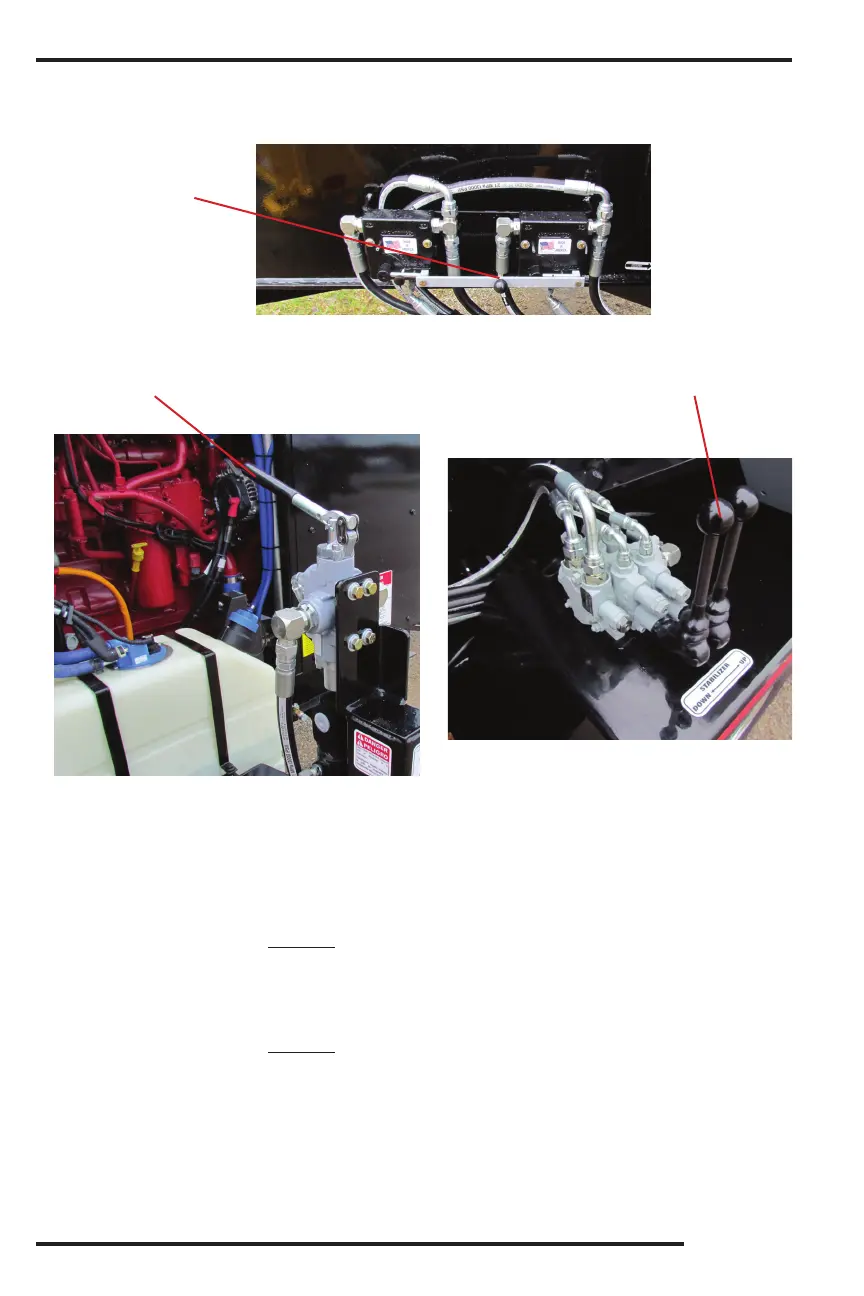

TONGUE JACK
CONTROL VALVE
REAR STABILIZER
CONTROL VALVE
FLOW CONTROL
VALVES
