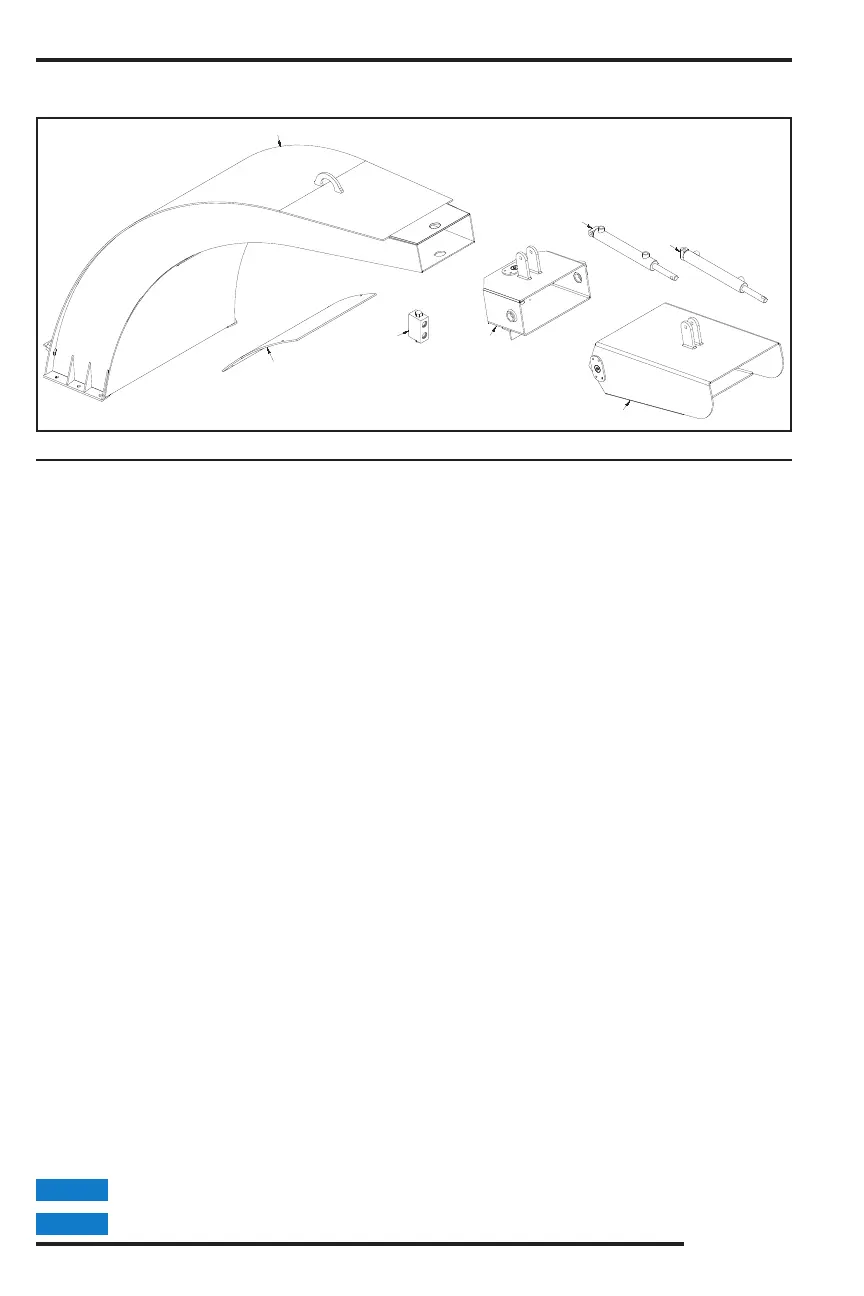

MODEL 20XP DISCHARGE COMPONENTS
FORESTRY DISCHARGE
LOCATION PART NUMBER DESCRIPTION
Parts may not be exactly as shown.NOTICE
Nuts, bolts, washers, and all other components can be ordered by physical description.NOTICE
6
3
4
5
1
2
6
1. 937-2003-66 Forestry Discharge Chute Assembly
2. a. 920-3006-05 Discharge Clean Out Door
b. 001-3004-10 Hinge - 18” (Not Shown)
3. 900-3949-09 Check Valve
4. 259-2000-56 Flipper Discharge - Inner
5. 259-2000-36 Flipper Discharge - Outer
6. 900-3943-75 Hydraulic Flipper Cylinder
