Bandit
110
Copyright 12/17
MODEL 20XP
1
2
3
4
6
7
8
9
10
11
12
13
6
6
6
7
9

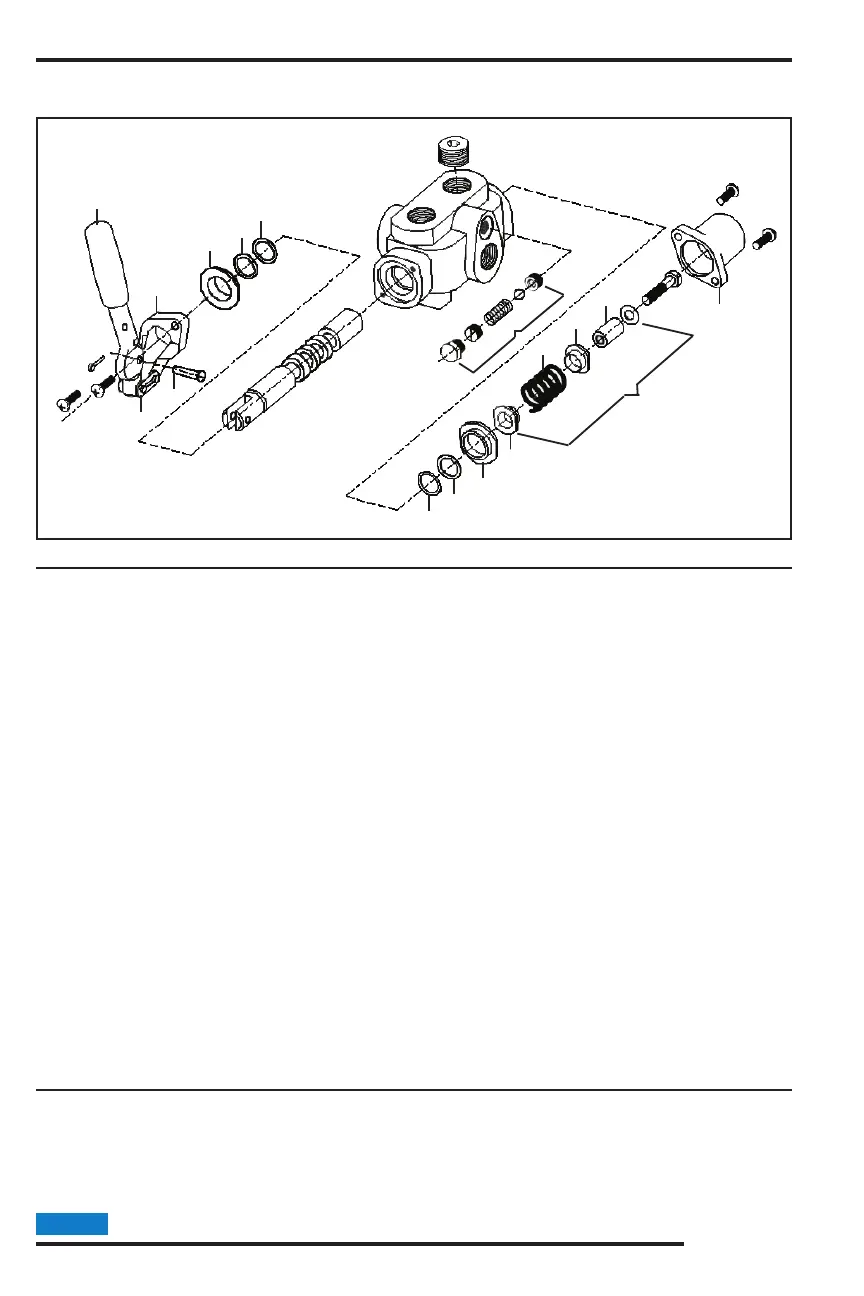

TYPICAL SPRING LOADED CONTROL VALVE
HYDRAULIC COMPONENTS
Parts may not be exactly as shown.NOTICE
LOCATION PART NUMBER DESCRIPTION
CONTROL VALVES
LOCATION PART NUMBER DESCRIPTION
1. 904-0003-29 Handle Only (Long)
2. 900-3905-95 Valve Bracket Only With Screws
3. 904-0003-30 Master Link Only Control Valve
4. 904-0003-31 Pin And Cotter Key For Control Valve
5. 904-0003-32 Bracket, Handle And Chain Link
NOTE: INCLUDES #’s 1, 2, 3, 4
6. 900-3937-34 Seal Kit For Control Valve
7. 904-0003-33 Seal Retainer For Control Valve
NOTE: NOT INCLUDED IN SEAL KIT
8. a. 900-3901-12 Relief Valve Kit - Spring, Ball, Screw
NOTE: SOLD ONLY AS A KIT
b. 900-3959-80 Allen Set Screw Only
c. 900-3941-12 Hex Head Plug & O-ring
9. 904-0003-34 Valve Spool Stop For Spring Loaded Valve
10. 904-0003-35 Valve Spool Spring
11. 904-0003-36 Valve Spacer For Yoke Lift Valve
12. 900-A-2941 Spring Center Kit For Spring Loaded Valve
13. 904-0003-37 Detent Cap Only For Spring Loaded Valve (Short)
1. 900-3920-01 Discharge Lock, Discharge Fold, Stabilizers, and Tongue Jack
