Do not attempt to operate the machine on an ascending or descending slope of more than 25° or 46% or
a side slope of more than 17° or 30%, it is Dangerous and could be Fatal. This is the maximum slope grade
the machine can be operated on if the hydraulic system, self propelled undercarriage, and engine are running
at maximum performance and good traction is sustained.
The machine should never be parked on a slope at any time. The machine can coast or creep causing
equipment and/or personal injury.
Make sure everyone is clear of machine before moving the machine. Stay clear of
undercarriage travel
system
when the machine is moving.
DO NOT entangle feet or hands in undercarriage travel system.
NEVER
sit, stand, lay, climb or ride anywhere on this machine while it is running, operating, or in transit.
You will be injured.
Use
EXTREME CAUTION
when traveling over non-level surface! This machine can tip over or tip backwards
on non-level surface. You will cause engine damage, machine damage and possible personal injury!
Any increase from the speci ed maximum operating angles may cause loss of lubrication function and
damage the engine.
IF MACHINE IS EQUIPPED WITH A SELF PROPELLED UNDERCARRIAGE
Machines equipped with undercarriage tracks are shipped with a manual from the track manufacturer.
Refer to it for service, operation, and safety information.
SAFETY PROCEDURES
SAFETY PROCEDURES
DANGER
!
DANGER
!
DANGER
!
DANGER
!
DANGER
!
WARNING
!
WARNING
!
25° MAX.
17° MAX.

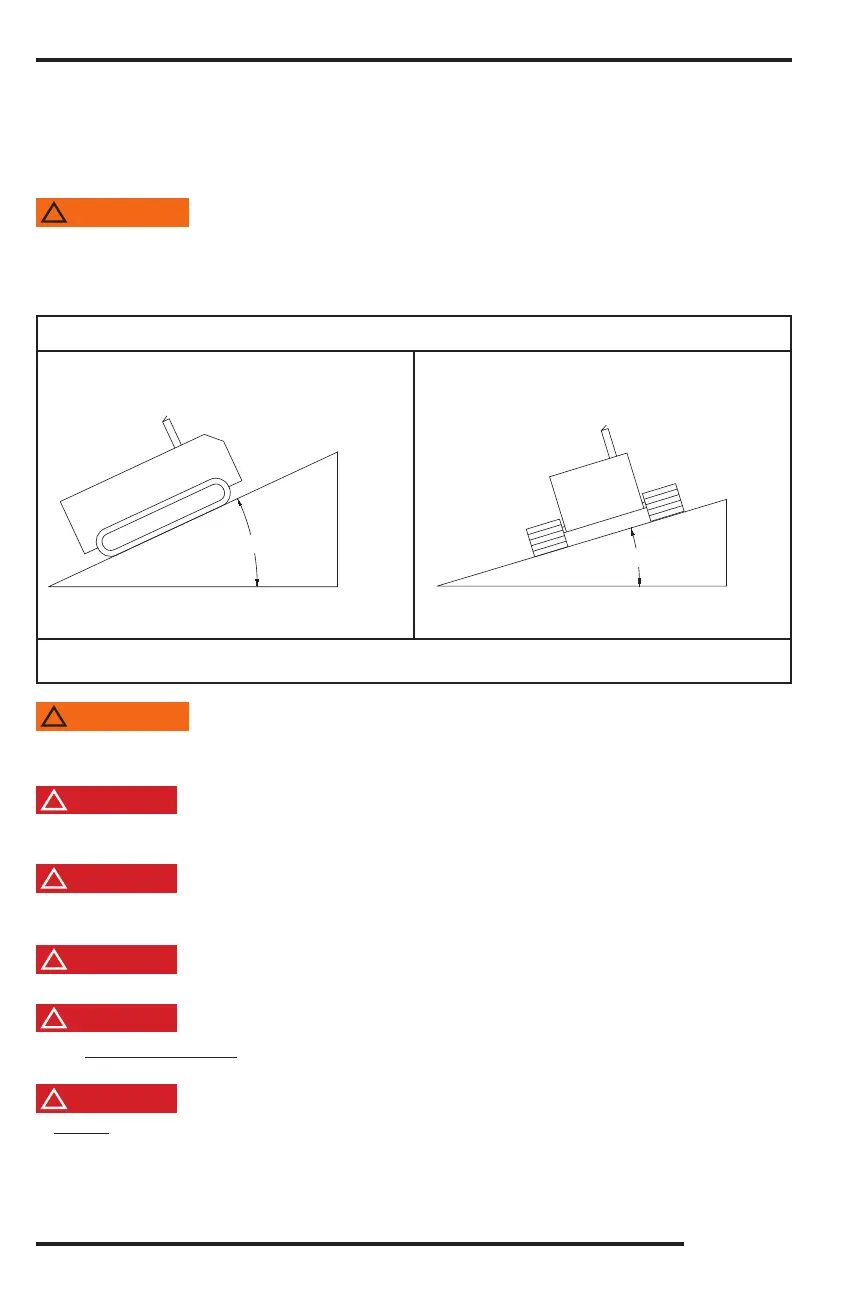

Maximum Slope Grade
Diagram shows percentage to degree of slope.
Percentage is in vertical feet for every 100 horizontal feet.
Ascending or Descending Slope Side Slope
100 FT. (30.5 m) 100 FT. (30.5 m)
46 FT.
(14 m)
(46%)
30 FT.
(9.1 m)
(30%)
25° MAX.
17° MAX.
