MODEL 20XP
CHECK
# DESCRIPTION DAY WEEK MONTH PROCEDURE
1 Drum Bearings X Purge bearings daily - wipe o excess
2 Feedwheel Bearings X Purge bearings daily - wipe o excess
3 Hood Hinge X 1 - 2 shots of grease - wipe o excess
4 Feedwheel Slide Box X Clean and oil with 10W/30
5
Steel Friction Areas: pivoting,
hinged, sliding, rolling
X
Lubricate (i.e. discharge ipper,
s t abilizers, etc.)
6 Chain Driven Components X
Dry lube (Swivel discharge, chain
driven feedwheels, etc.)
7 Pintle Eye Ring X Grease to reduce wear
8 Discharge Swivel Plates 3 Months Grease as needed
9 Clutch
Grease per MFG’s instructions
10 Wheel Bearings - if equipped
Grease or oil per MFG’s instructions

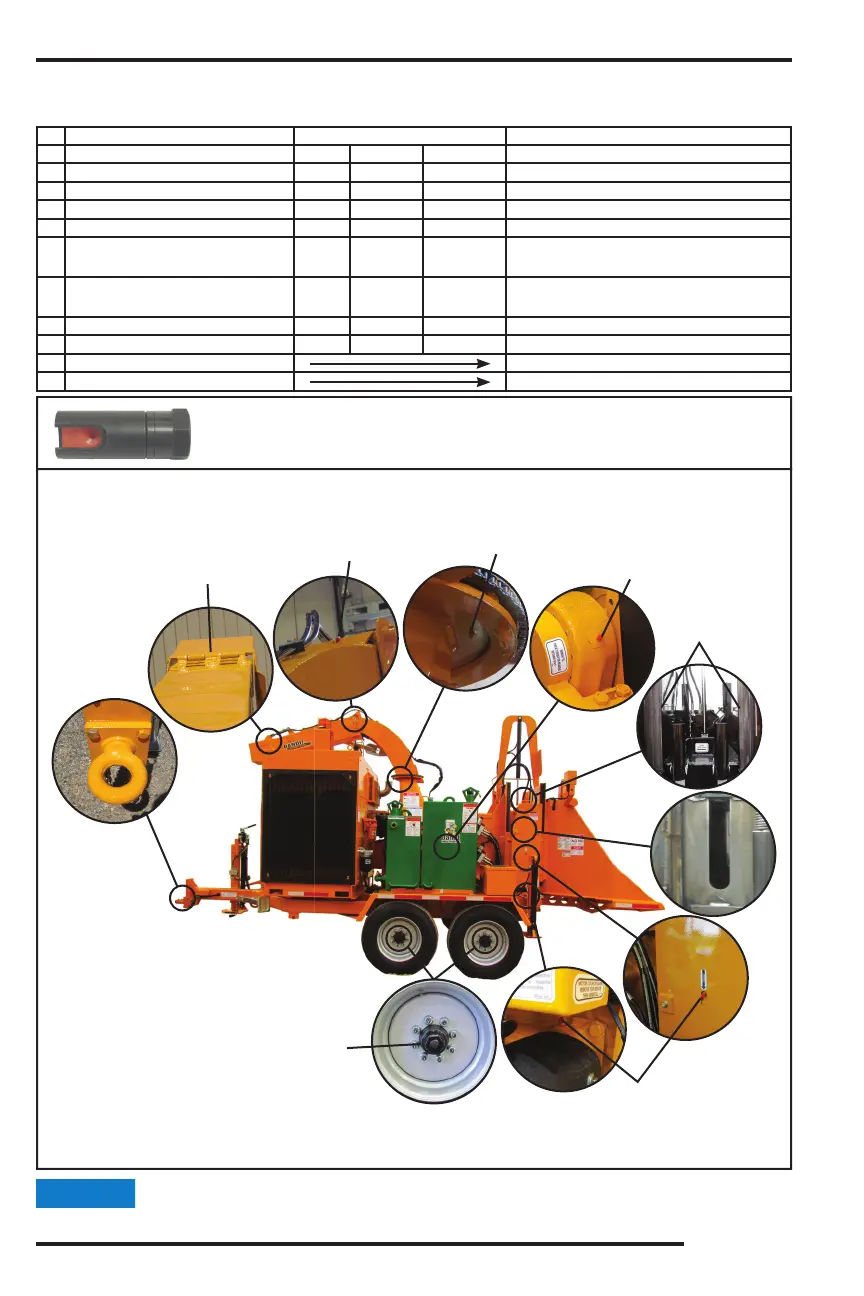

LUBRICATION CHART - 20XP
MAINTENANCE
A right angle grease tting may need to be used to grease some of the lubrication
points. This type of grease tting can be obtained from most local automotive
parts stores.
Use as a reference only, locations may vary depending on options or component manufacturer.
Lubrication point instructions are described on the machine, in the Lubrication & Coolant
Section and Maintenance Section of this manual, or component manufacturer’s manual.
