Appendix 43
Example: AV Master
If customers do not have any Audio Master in their setup, but wants to replace the BeoVision 7 with a BeoVision 11 on Network Link. Then
BeoVision11shouldbeconnectedtotheMasterLinksystemthroughaBeoLinkConverterNL/ML.(Seeg.13).
As BeoVision 7 (the V Master) is removed from the
Master Link, then the BeoLink Converter NL/ML can
take the AV Master role to be able to distribute
sound from audio and video sources on BeoVision 11
(or Network Link in general) to the Master Link. In
the BeoLink Converter NL/ML menu Sources visible
on ML, both video and audio sources can be
selected.(Seeg.14).
As there is no Audio Master and as BeoVision 7 (the
V Master) is removed from the Master Link, then the
BeoLink Converter NL/ML can’t distribute anything
from Master Link to Network Link. In the BeoLink
Converter NL/NL menu Experience maped to NL,
nosourcescanbeselectedatall.(Seeg.15).
! Be aware of that it is necessary to have a ML Power Master on Master Link, when the
BeoLink Converter NL/ML has the ML role AV Master (Audio Video Master). In this setup
the ML Power Master is the BeoVision 6.
Additional information about ML Power Master may be found on BeoWise.
(BeoWise > Link > BeoLink > BeoLink Converter NL/ML > TIPS > Compatible Bang &
Olufsen Master Link products).
Power Link = Yellow
Master Link = Red
BeoLink Converter
NL/ML
BeoVision 11
Network Link
BeoLink Active
Bedroom
Kitchen
Living room
Technical room
Library
Network Link = Green
Office
Internet
ISP Router
Network Link
router
Switch
NAS
server
BeoVision 6
Master Link
ML AV Master

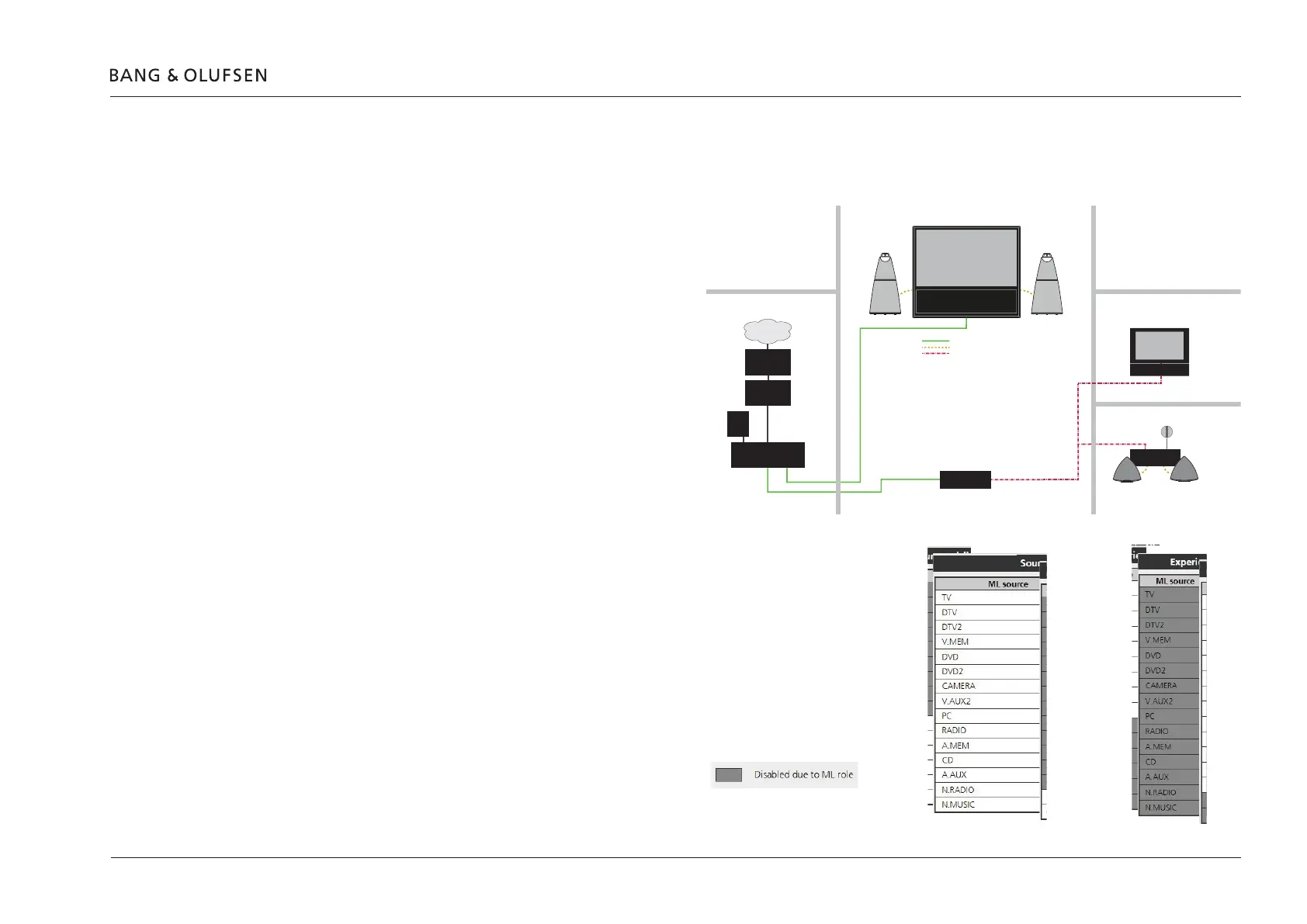

Fig. 13
V Master
AV Master
Source Center
A Slave
A Master
V Master
AV Master
Source Center
A Slave
A Master
Fig. 14
Fig. 15
V Master
AV Master
Source Center
A Slave
A Master
