Appendix 44

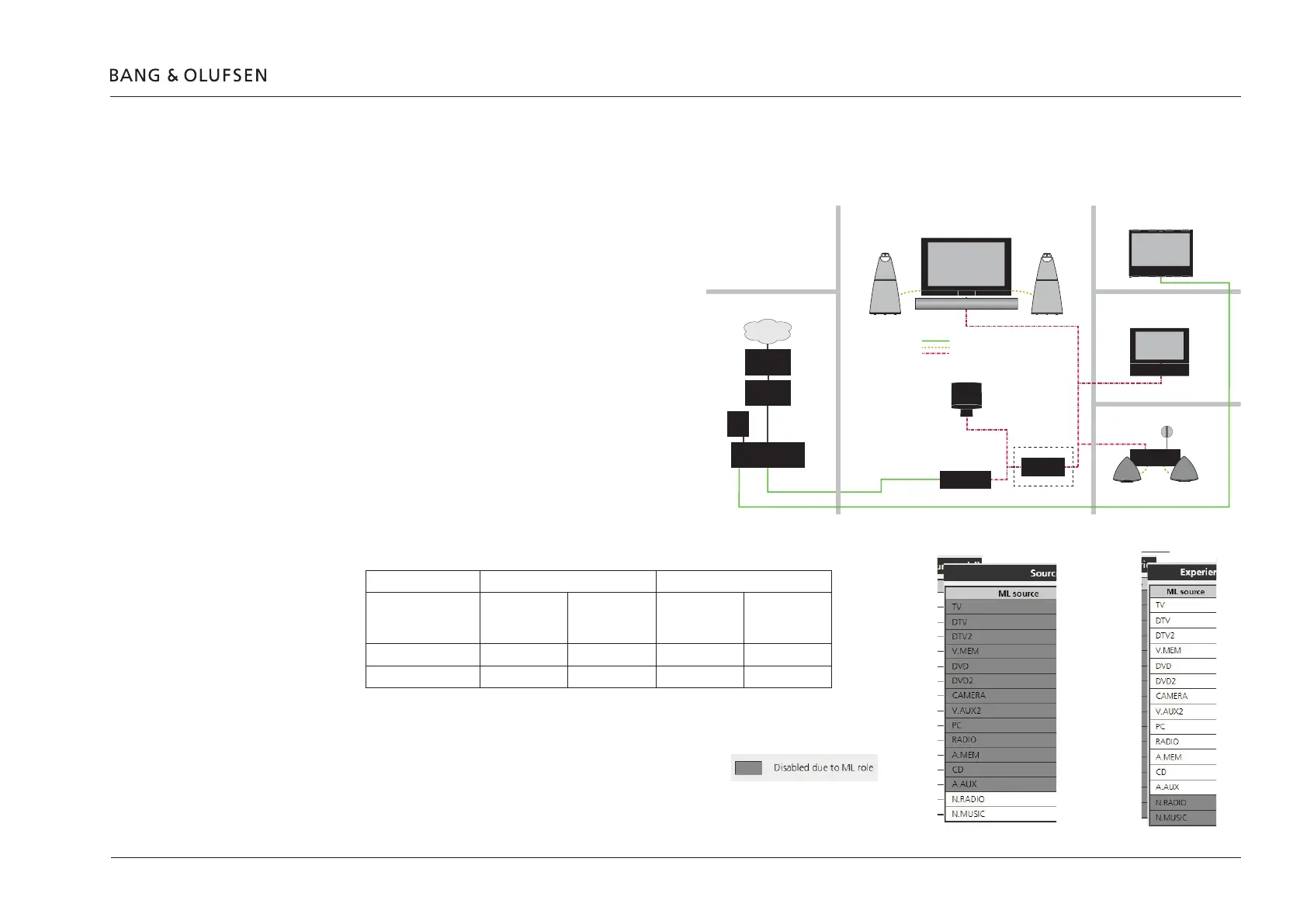

Example: Source Center
If customers have an Audio Master (i.e. BeoSound 4) which is able to use N.MUSIC and N.RADIO from a connected BeoMaster 5 set to
AudioMaster = No (Source Center role), then BeoLink Converter NL/ML can replace this BeoMaster 5 and use N.MUSIC and N.RADIO to distribute
twoNetworkLinksourcestoMasterLink.(Seeg.16).
As there is no BeoMaster 5 on the Master Link, then
the BeoLink Converter NL/ML can take the Source
Center role to be able to distribute N.MUSIC and N.
RADIO from BeoPlay V1 (or Network Link in general)
to the Master Link. In the BeoLink Converter NL/ML
menu Sources visible on ML, only N.MUSIC and N.
RADIOcanbeselected.(Seeg.17).
As N.MUSIC and N.RADIO is not distributed from the
Master Link, then the BeoLink Converter NL/ML can’t
distribute sound from these sources from Master Link
to Network Link. In the BeoLink Converter NL/NL
menu Experience maped to NL, N.MUSIC and N.
RADIOcan´tbeselected.(Seeg.18).
! Be aware of that in some situations there will be echo. See the table below.
Network Link Master Link
Sources
Audio Video Audio Video
N.RADIO,
N.MUSIC
All video
sources
CD, Radio,
A. Mem, etc.
All video
sources
With Delay box ECHO NO ECHO NO ECHO ECHO
Without Delay box NO ECHO NO ECHO ECHO ECHO
BS4
Power Link = Yellow
Master Link = Red
BeoMaster 5
ML Gateway
NL/ML Delay Box
BeoLink Converter
NL/ML
BeoLink Active
Bedroom
Kitchen
Living room
Technical room
Library
Network Link = Green
Office
Internet
ISP Router
Network Link
router
Switch
NAS
server
BeoVision 6
Master Link
ML Source Center
ML A Master
ML V Master
BeoPlay V1
Network Link
BeoVision 7
Master Link
Optional
IN
OUT
Fig. 16
V Master
AV Master
Source Center
A Slave
A Master
V Master
AV Master
Source Center
A Slave
A Master
Fig. 17
Fig. 18
V Master
AV Master
Source Center
A Slave
A Master
