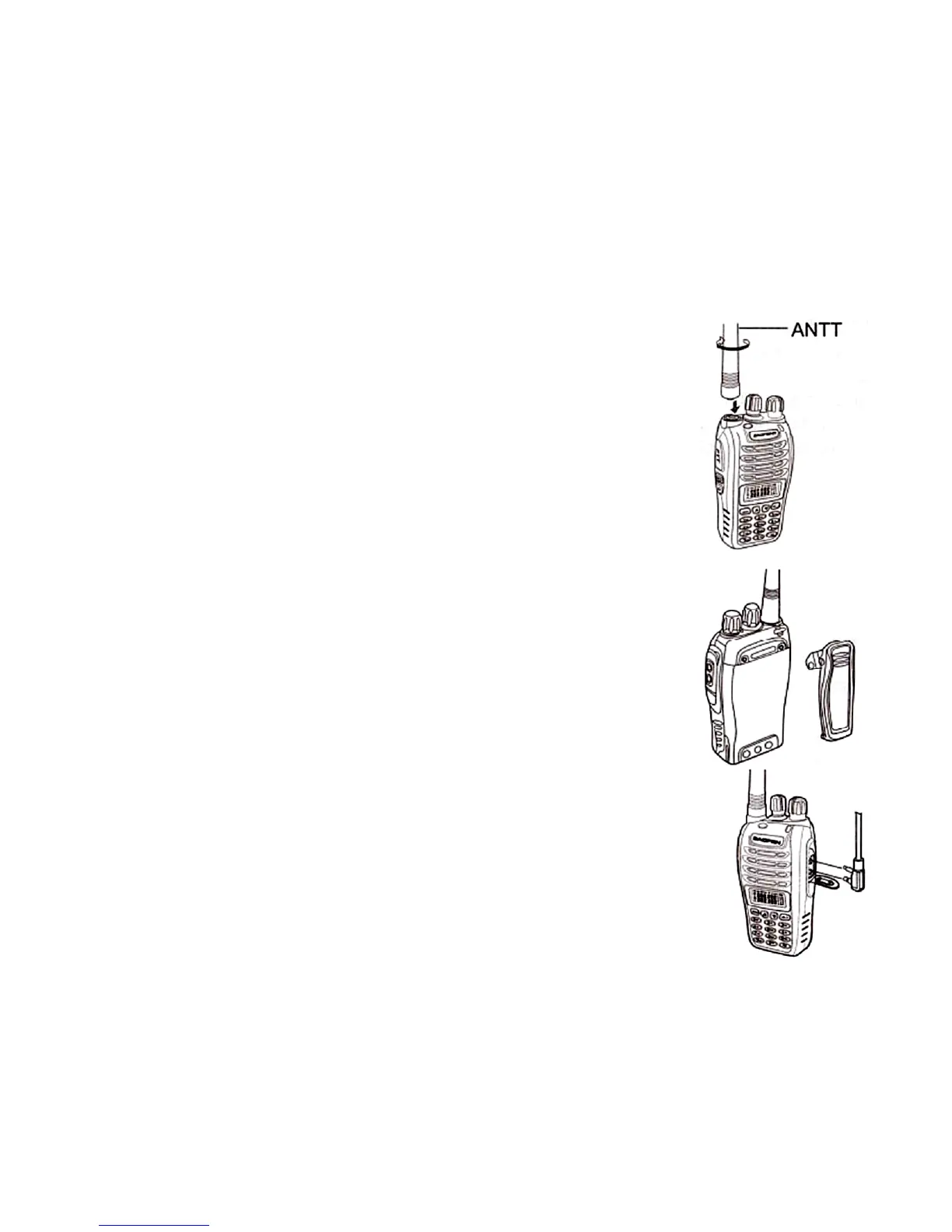

Install the antenna as shown in the figure below and
turn it clockwise until it stops.
Note:
- When installing the antenna, don't rotate it by its top,
holding it by its base and turn.
- If you use an external antenna, make sure the “SWR”
is about 1.5:1 or less, to avoid damage to the
transceiver's final transistors.
- Do not hold the antenna with your hand or wrap the
outside of it to avoid bad operation of the transceiver.
- Never transmit without an antenna.
INSTALLING THE BELT CLIP
If necessary, install the belt clip at the rear of the
battery compartment cover as shown in the figure
below.
Note:
- Do not use any kind of glue to fix the screw on the
belt clip.
The solvents Glue may damage the battery casing.
MICRO-HEADSET INSTALLATION OF EXTERNAL
Plug the external micro-headset connector into the jack
of “SP&MIC” of the transceiver as shown in the figure
below.
