INSTALLATION OF ACCESSORIES
BATTERY INSTALLATION
- When attaching the battery, make sure the battery is in parallel and in good contact
with the aluminum chassis. The battery bottom is about 1 to 2 centimeters below the
bottom of the radio's body.

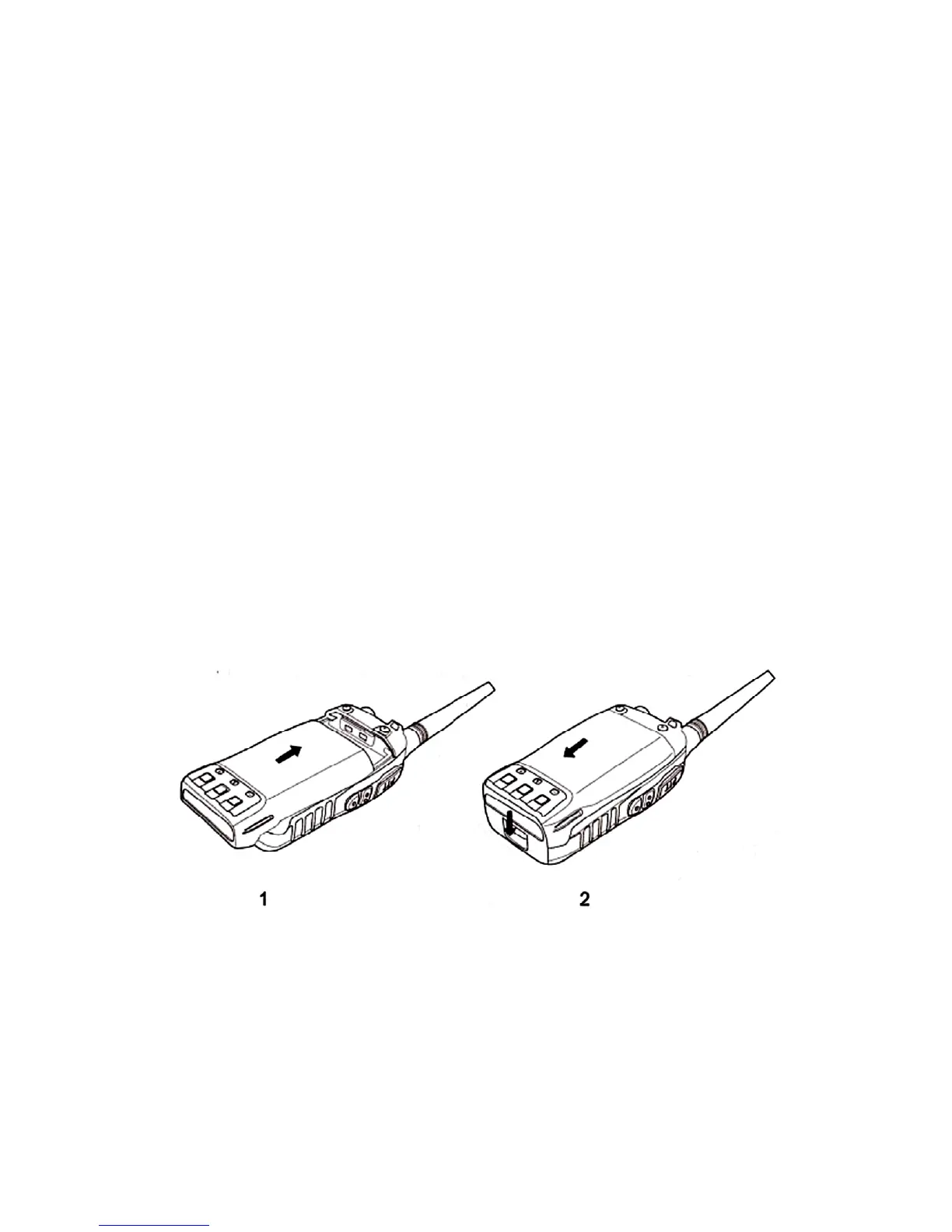

- Align the battery with the guide rails on the aluminum chassis and slide it upwards
until a “click” is heard.
- The battery latch at the bottom locks the battery.
- Turn off the radio before removing the battery.
- Slide the battery latch, at the bottom of the radio's body, in the direction indicated by
the arrow.
- Slide down the battery for about 1 to 2 centimeters, and then remove the battery
from the radio's body.
