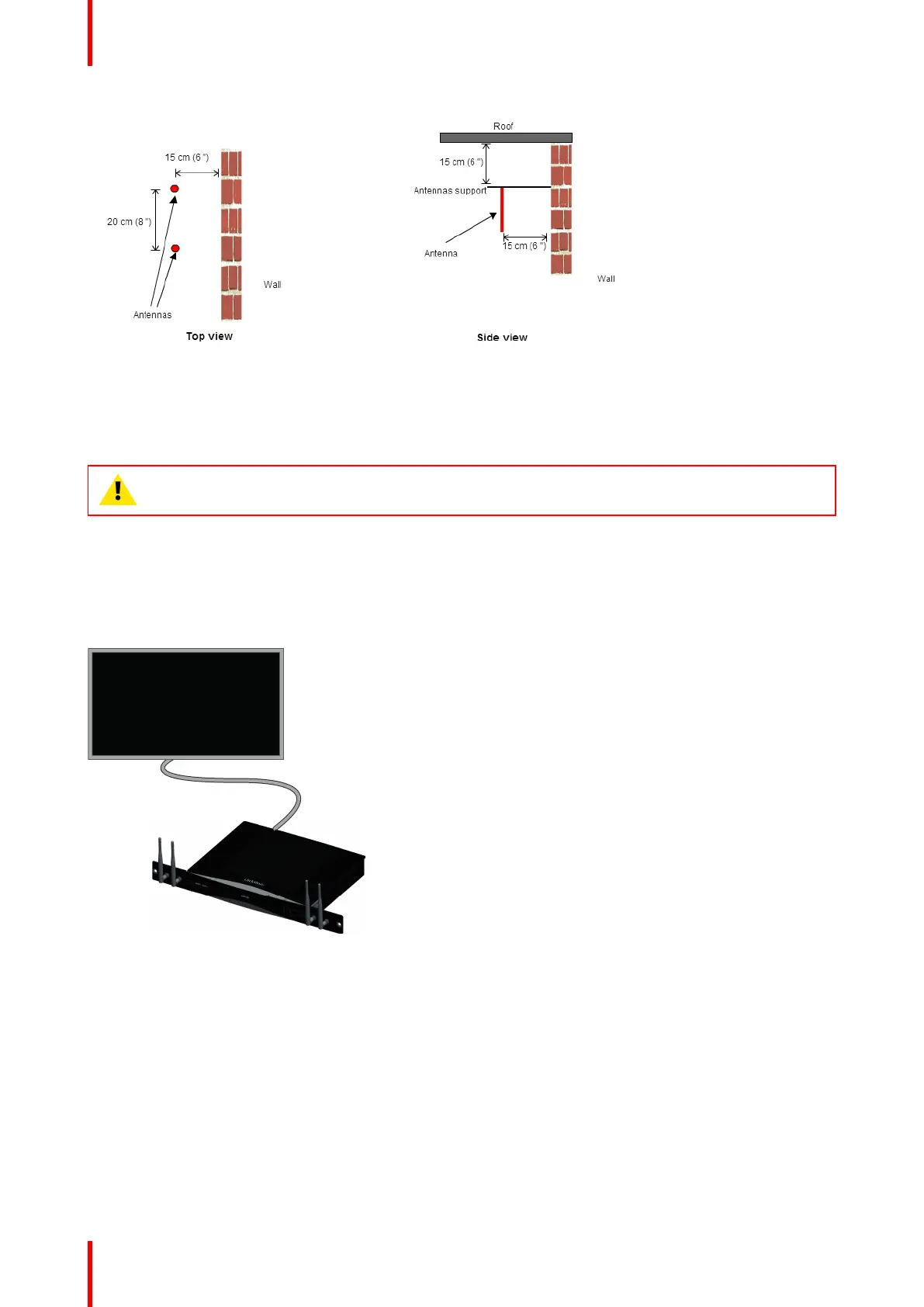

Image 4-5: Closer view of antennas installation in the meeting room
4.7 Video signal connections to the Base Unit
CAUTION: Make sure the Base Unit is installed properly before connecting.
About Video signal connection
Depending on the local setup, a single screen or dual screen setup is possible.
For a single screen setup, HDMI connection should be made between the Base Unit and the display.
You can use any HDMI output.
HDMI
Image 4-6: One display
For a dual screen setup, 2 HDMI connections should be made between the Base Unit and the displays.
