R5900049 /07 ClickShare CSE-800 99
• "Wake up" signal over the network
• Pairing a Button on the Base Unit's USB port
• Detection of display hot plug
Standby mode
When the Base Unit goes in standby mode, it will shut down all processes, including the Wi-Fi access point
and the secondary LAN connection.
When there is an active network connected to the Base Unit's primary LAN interface and Corporate network is
enabled, the primary LAN interface will remain active and the Base Unit's LEDs will be breathing white to
indicate this standby mode. Otherwise, The Base Unit's LEDs will be dark.
Power consumption in Deep standby: 0.4W
The Base Unit will wake up when the standby button on the Base Unit is pressed, or
when the primary LAN interface remains active: a detection of HDMI input hot plug or button or app connecting
with the Base Unit's primary LAN interface.

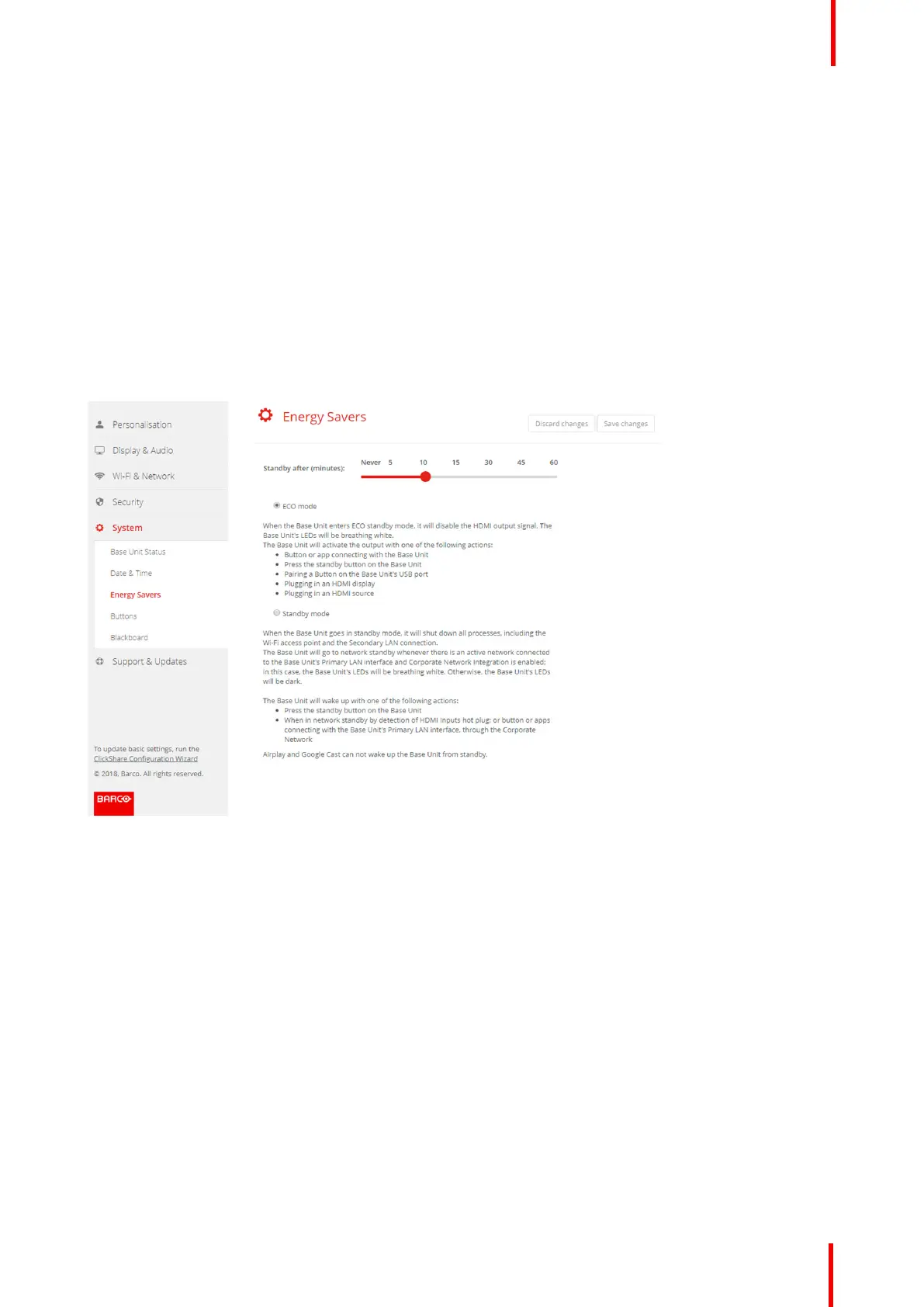

Image 6-49: Energy savers
How to change the display timeout and standby mode
1. Log in to the Configurator.
2. Click System → Energy Savers.
3. To set a display time out, move the slider to the left or to the right until the desired standby timeout is reached.
4. To select a standby mode, select the radio button before Eco standby or Deep standby.
6.29 Buttons
About Buttons
It is possible to update the software of the Buttons over Wi-Fi. All Buttons used with the Base Unit are
indicated in the Buttons List. The list contains the state, the signal strength, the serial number, the firmware
version, the number of connections and last connection.
CSE-800 Configurator
