19CLM W6
2. Introduction

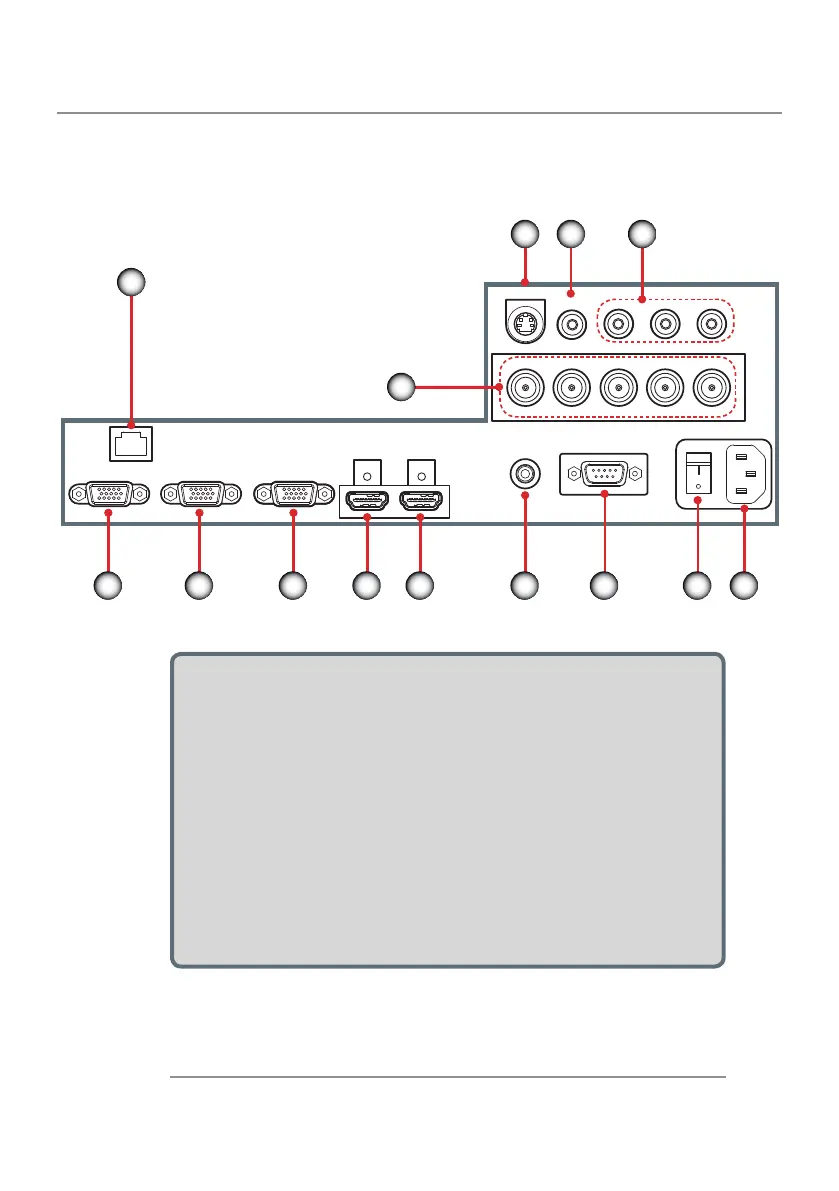

2.3.3 Input/Output (I/O) Panel
S-VIDEO
DC12V
VIDEO Y Pb Pr
R/Pr G/Y B/Pb H V
HDMI 1 HDMI 2
AC MAINS POWER
MONITOR VGA 1 VGA 2
RS232
10/100
BASE-T
7
1 2
8 9 106 12
13
14
3
11
4
5
S-Video Input Connector
Video Input Connector
Component Video Input Connector
BNC Input Connector (YPbPr/RGBHV)
Networking Connector RJ45
Monitor Connector (Loop from VGA)
VGA 1 Connector (PC Analog Signal/Component Video Input)
VGA 2 Connector (PC Analog Signal/Component Video Input)
HDMI 1 Connector
HDMI 2 Connector
+12V Relay Connector
RS232 Connector
Power Switch
Power Socket (AC Input: AC100-240V~, 50-60Hz, 9.0A)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
To Next Page
