Barco MXRT-7600 - Connecting Your Barco Displays

K5905271 /16 Display Controller
12

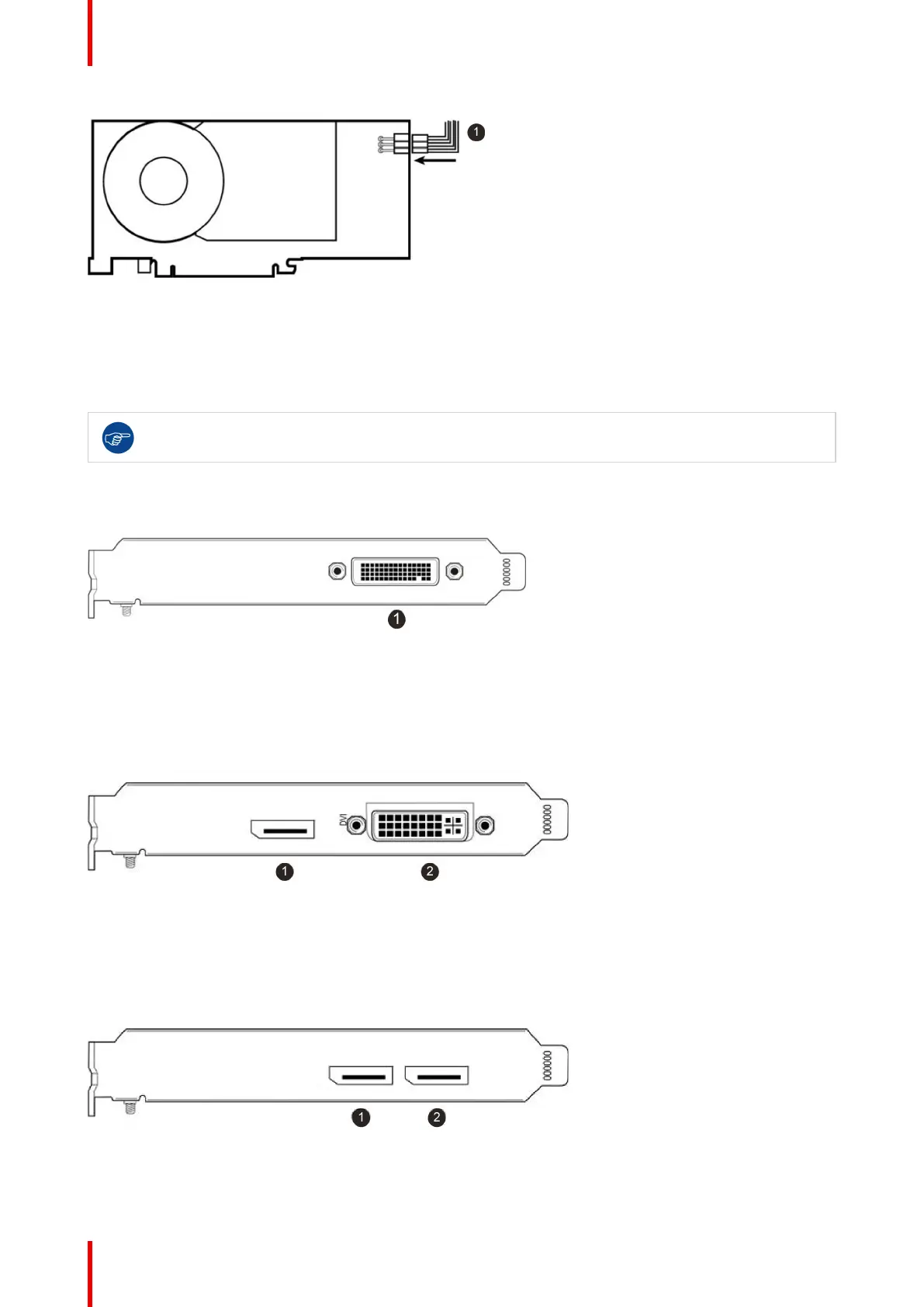

Image 2-2: Power connection for the MXRT-7400, MXRT-7500 & MXRT-7600 controllers
9. Screw in or firmly fasten the Display Controller. Replace and secure the computer cover.
2.4 Connecting your Barco Displays
For a detailed description of the display installation and signal connection, please refer to the
Display User Guide.
IO-Panel for the Barco MXRT-1450 & MXRT-1451
Image 2-3: MXRT-1450 & MXRT-1451
1. DMS-59 connector provides DVI-I / Head 1 & Head 2 output connections through included the Y-adapter
cable.
IO-Panel for the Barco MXRT-2400 & MXRT-2500
Image 2-4: MXRT-2400 & MXRT-2500
1. DisplayPort Connection
2. DVI-I Connection
IO-Panel for the Barco MXRT-2600
Image 2-5: MXRT-2600
1. DisplayPort #1
Display Controller installation
