If it is necessary to ship a controller installed in a workstation, the MXRT-7600 requires an extender bracket to
protect against shock and vibration. Assemble the extender bracket as shown below. Refer to the workstation
user documentation on proper installation to its card guide.

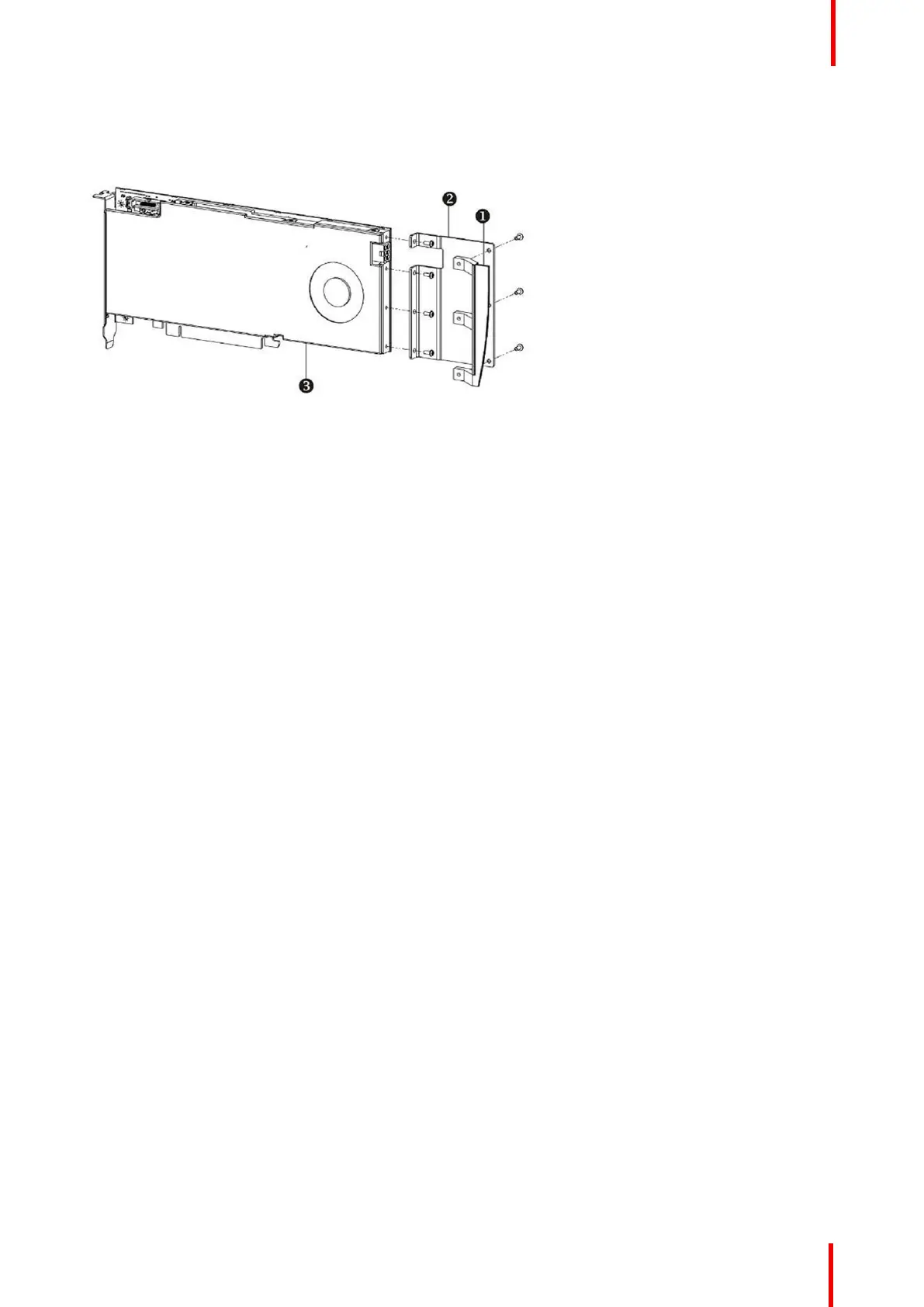

Image 2-11: MXRT-7600 Extender Bracket
1. Bracket
2. Extender
3. MXRT-7600
Display Controller installation
