Display Controller installation
System manual Nio 5MP 27

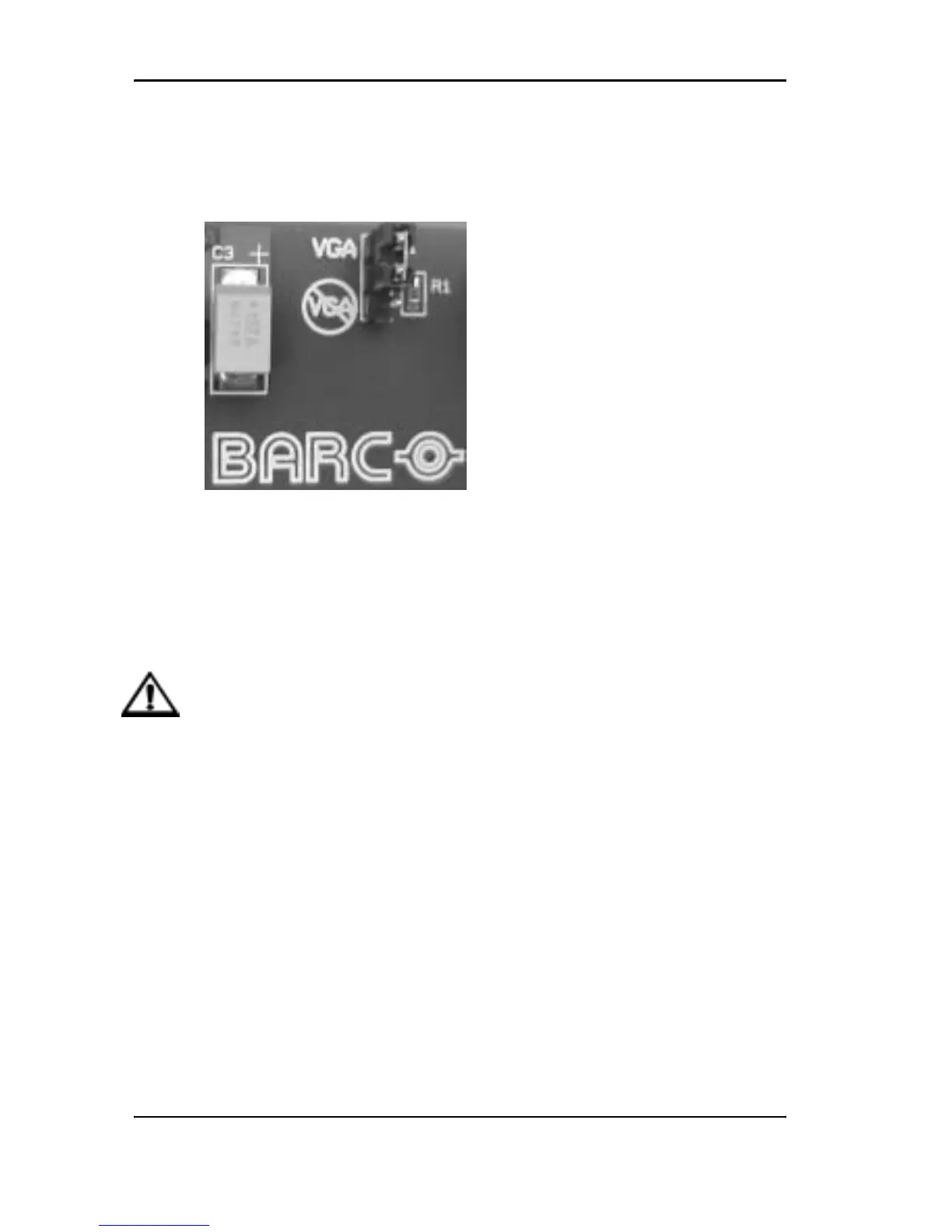

are, check the setting of the Jumper at J-1 on the graph-
ics board (see figure 5). By default, VGA should be
enabled, on the top two pins.
Figure 5
If you decide to use a separate VGA monitor as your boot
monitor, you must disable the BarcoMed Nio’s on-board
VGA capabilities by moving the jumper to the bottom
two pins.
Caution: To use multiple BarcoMed Nio controllers in a
single host with VGA enabled, you should enable VGA on
only ONE of the BarcoMed Nio display controllers and
disable VGA on ALL the other BarcoMed Nio display
controllers.
Examples of PCI slots
Although the BarcoMed Nio display controller has a 64
bit PCI connector, it functions as a 32 bit board. It may
be installed in either a 32 bit or 64 bit slot with no loss of
functionality. Figure 6 on page 28 illustrates the types of
slots so that you can correctly identify which one to use
for the BarcoMed Nio display controller and which ones
not to use.
