3. Connections
3. CONNECTIONS
Preparations
To get a ccess to the connections, the covers of the projector m ust be removed.
CAUTION: Only authorized service personnel are allowed t o remove the covers.
3.1 R emoving the covers
WARNING: Make sure that the power of th e p rojector is t urned off.
Removingthesidecover
1. Loosen tw o screw s (a) on the rear and two screws (b) on the side that are securing the side cover (c) using a Phillips screwdriver.
(a)
(b)
(c)
(a)
(b)
(c)

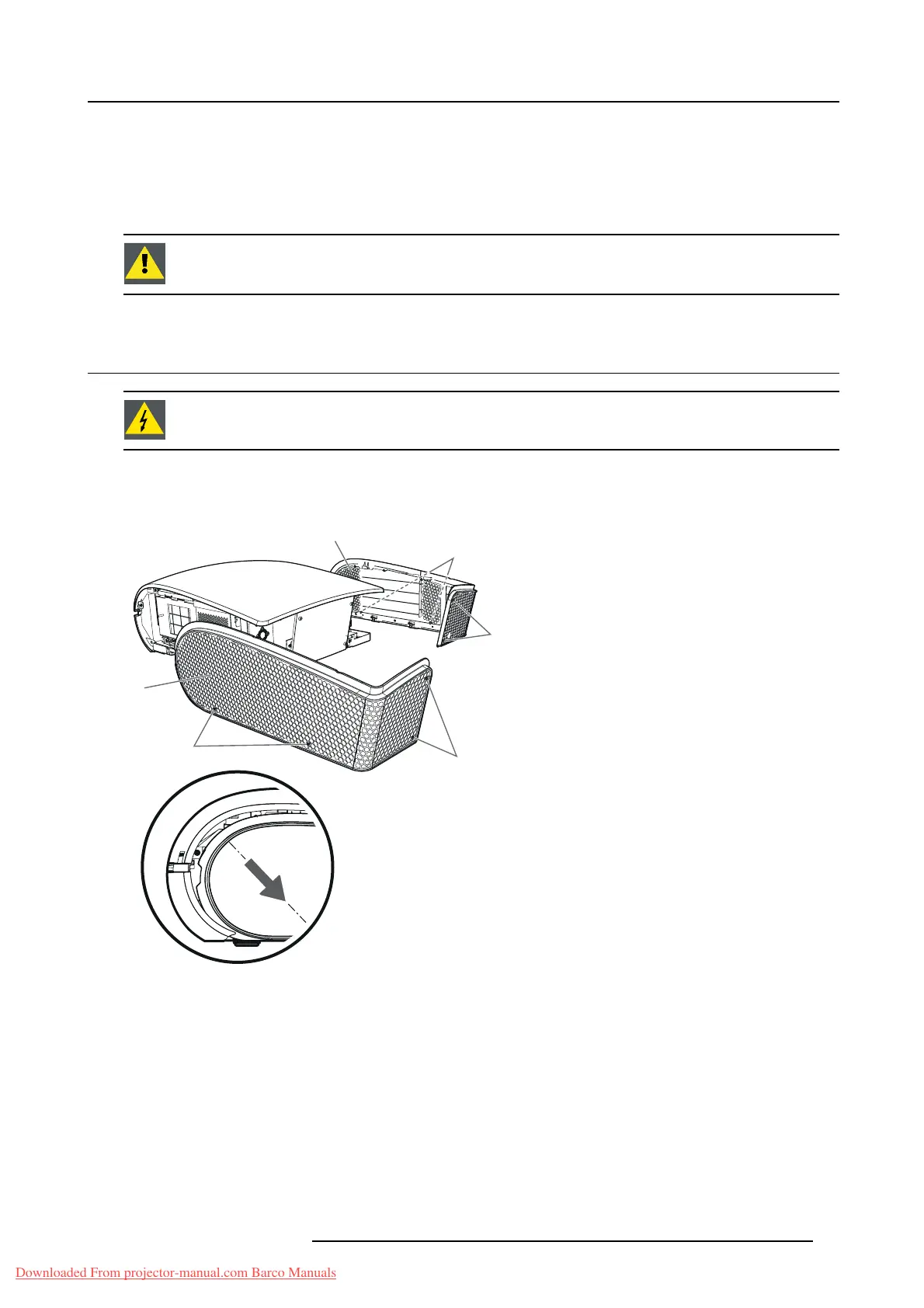

Image 3-1
Side cover removal
2. Slide and remove the side cove
r towards the rear.
Removing the rear cover
1. Loosen th e four screw s ( d) that are securing the rear cover ( e) using a Phillips screwdriver.
R5905597 PHXX SERIES 20/05/2014
21
