COMPOSITE SYNC: LOW=0~0.65Vpp
HIGH=2.8~5.5Vpp
NEGATIVE. 1K ohm.
SIGNAL B. DVI-D (T.M.D.S) INPUT : T.M.D.S HIGH LEVEL, 1K ohm
POSITIVE.
SIGNAL C. COMPOSITE VIDEO : 1Vpp 75 ohm POSITIVE.
SIGNAL D. S-VIDEO (NTSC) : Y = 1Vpp, 75 ohm, POSITVE.
SYNC = 0.3Vpp, NEGATIVE
C = 0.286Vpp 75 ohm. POSITIVE
SIGNAL E. S-VIDEO (PAL) : Y = 1Vpp , 75 ohm, POSITIVE.
SYNC=0.3Vpp, NEGATIVE.
C = 0.3Vpp. POSITIVE
SIGNAL F. Components VIDEO : Y = 1Vpp, 75 ohm, POSITIVE.
SYNC = 0.3Vpp, NEGATIVE.
Cb = 0.7Vpp,75 ohm, POSITIVE.
Cr = 0.7Vpp 75 ohm. POSITIVE

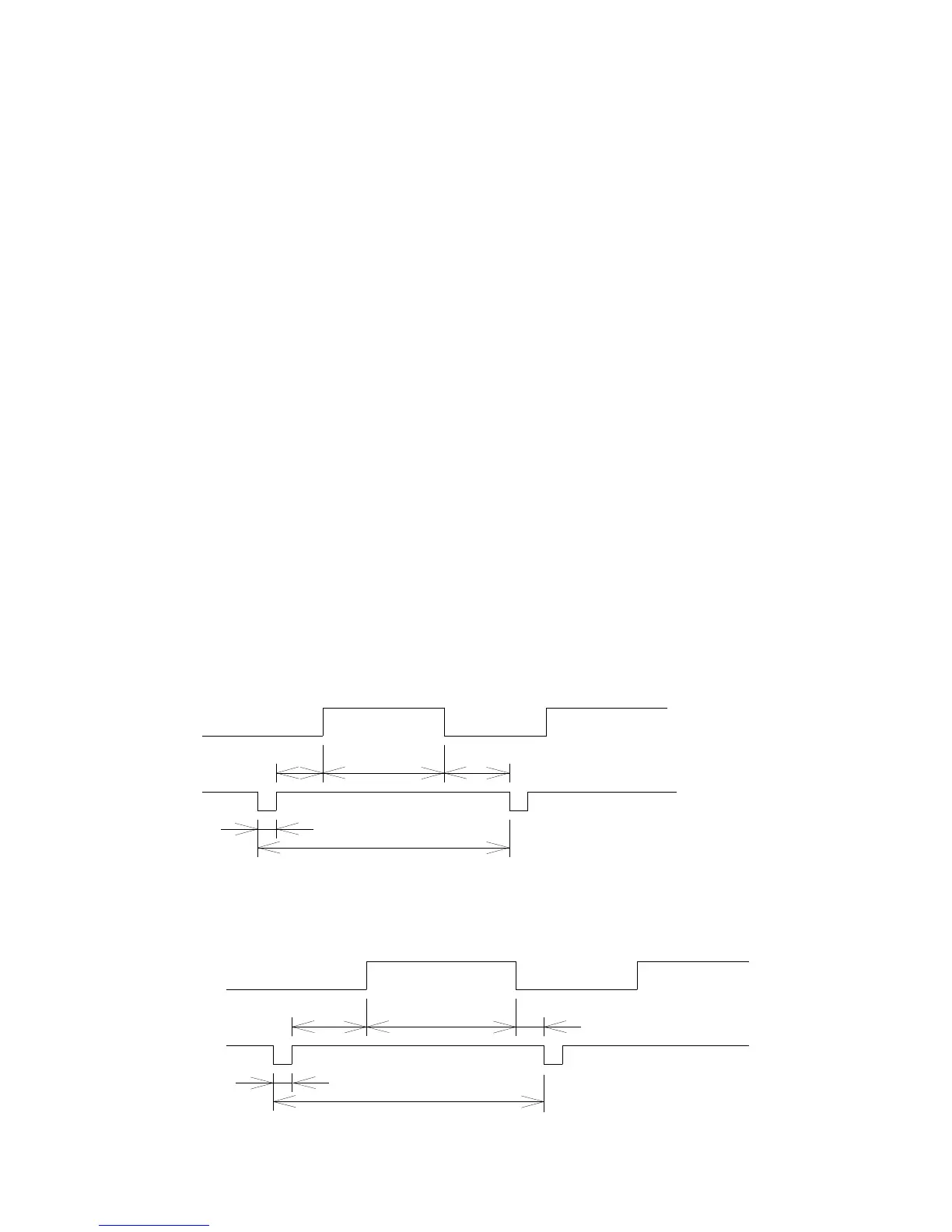

TIMING OF INPUT SIGNALE
P
O
R
S
VIDEO
Q
VERTICAL
VIDEO
D
B
A
E
C
