4-11 Ballast & DC-DC Board & AC Filter Board & Power Board & Fan 8 & Fan 9

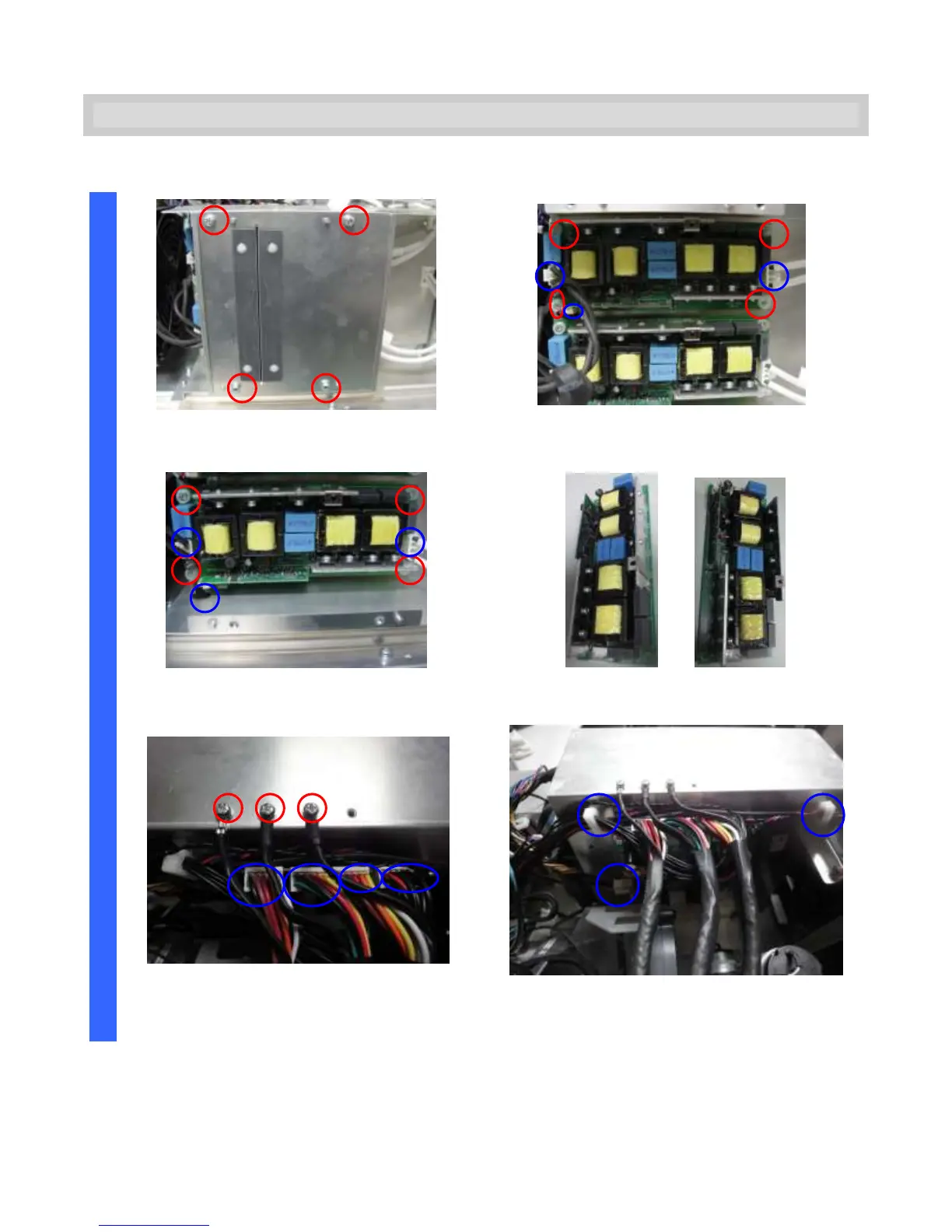

Loosen 4 screws on the ballast module
cover and then take off it.
Unplug 3 connectors and Loosen 4 screws on
ballast. Then, take off it.
Unplug 3 connectors and Loosen 4 screws
on ballast. Then, take off it.
Take out the two ballasts.
Loosen 3 screws and unplug 4 connectors
on the power module and DC-DC board.
Unplug 1 connector and 2 group cables fasten
tie on the power module and DC-DC board.
