Barco RLM W12

58 of 123

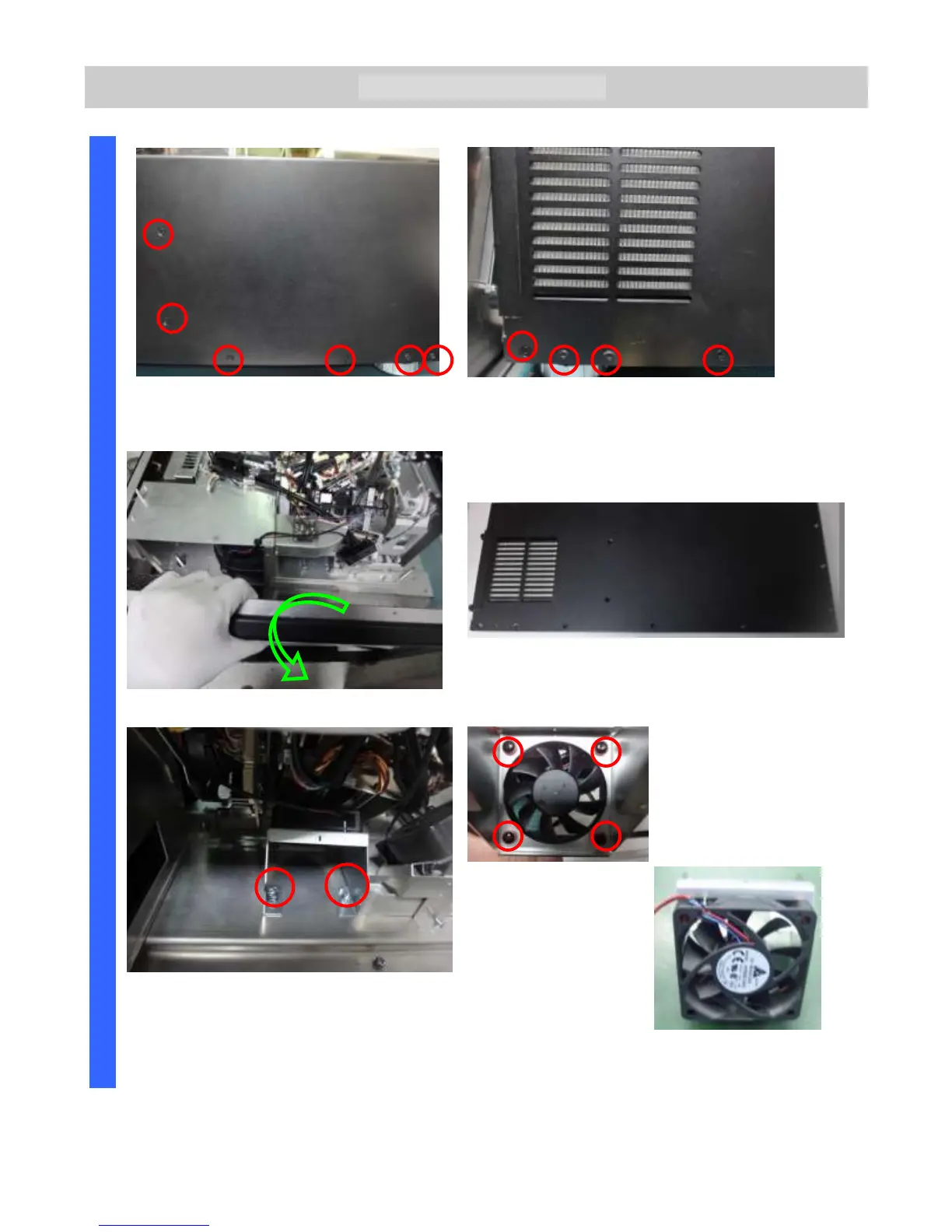

4-13 Right Cover & Fan 0
Loosen 6 screws on the right bottom and
middle side of right cover.
Loosen 4 screws on the left bottom side of
right cover.
Take off the right cover.
Right Cover
Loosen 2 screws on the bracket of Fan 0.
Loosen 4 plastic pin on the bracket of Fan 0,
then take off the Fan0.
