67 of 123
5. PROGRAM SETTING AND SOFTWARE DOWNLOAD
5-1. Firmware Downloads Procedure for Main Formatter Board:
5-1-1. Connect the AC power of the projector and have the projector in standby mode.
5-1-2. Connect the RS-232 cable between the projector and the PC.

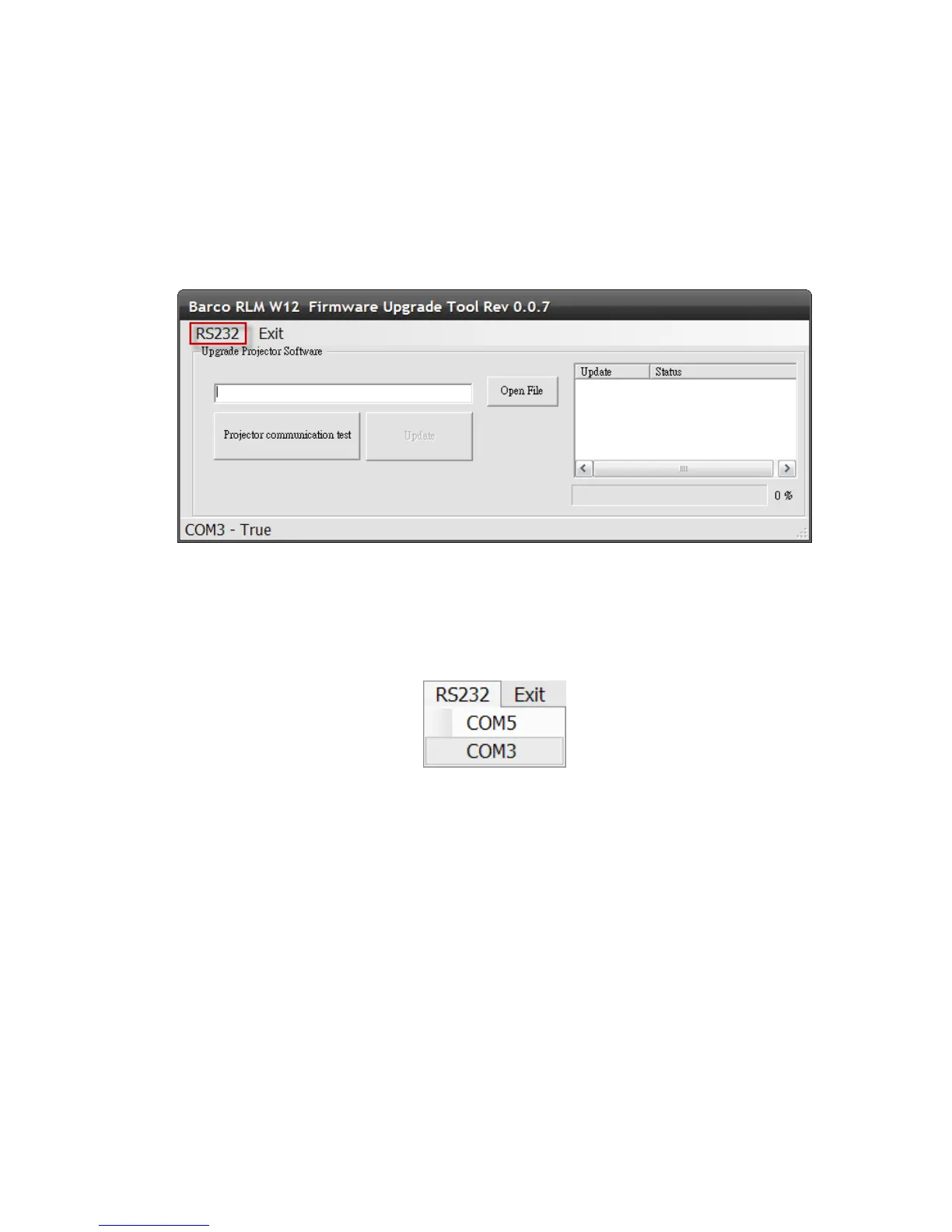

5-1-3. Open the Firmware Upgrade Tool accompanied with the firmware release.
5-1-4. Click the RS232 from menu to select the correct COM port number corresponding to the
connection.
