Barco RLM W12

51 of 123

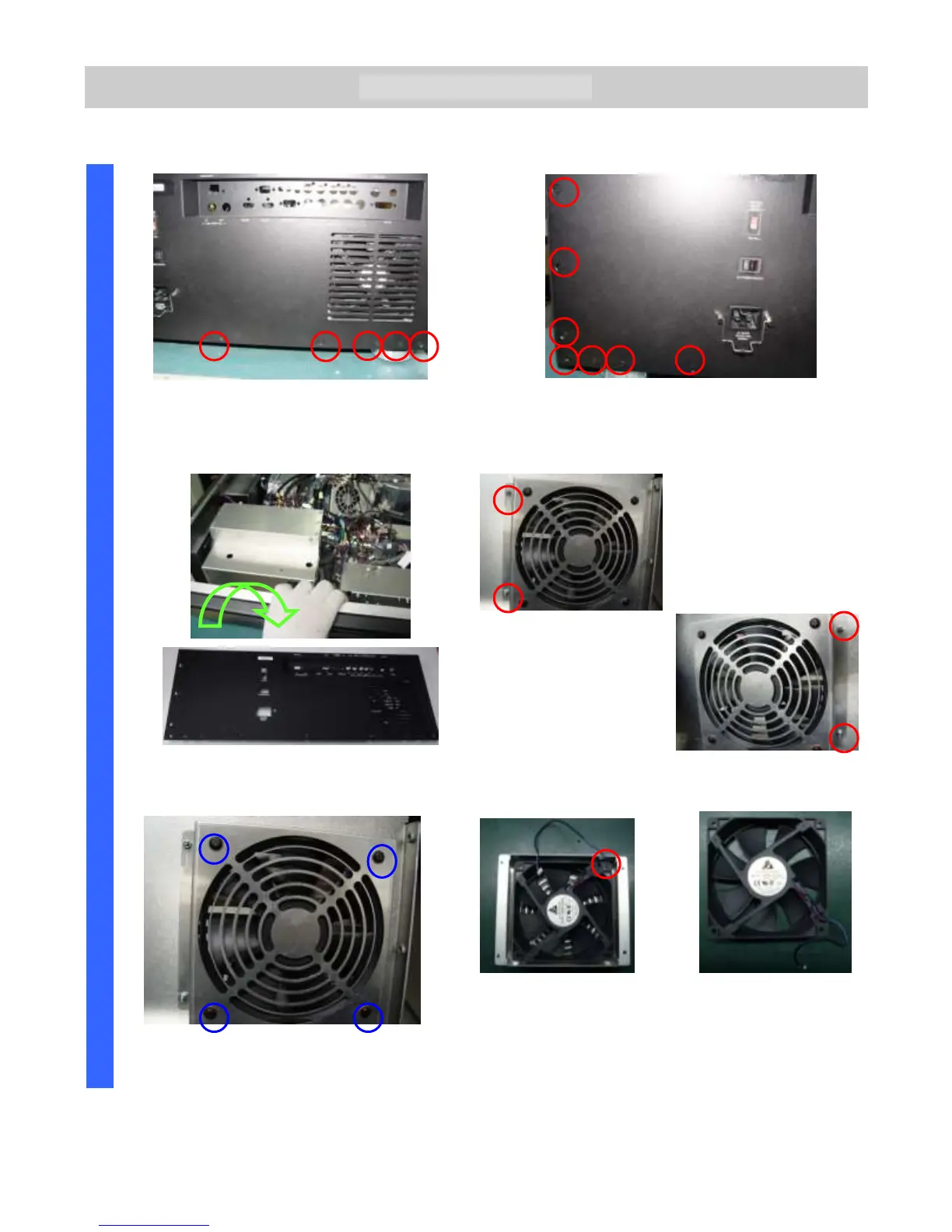

4-10 Left Cover & Fan 1
Loosen 5 screws on the bottom side of left
cover.
Loosen 7 screws on the left side of left cover.
Take off the left cover.
Loosen 4 screws on the Fan 1 module of left
cover.
Loosen 4 plastic pin on the Fan 1 module of
left cover.
Unplug the cable from bracket and take off the
Fan 1.
