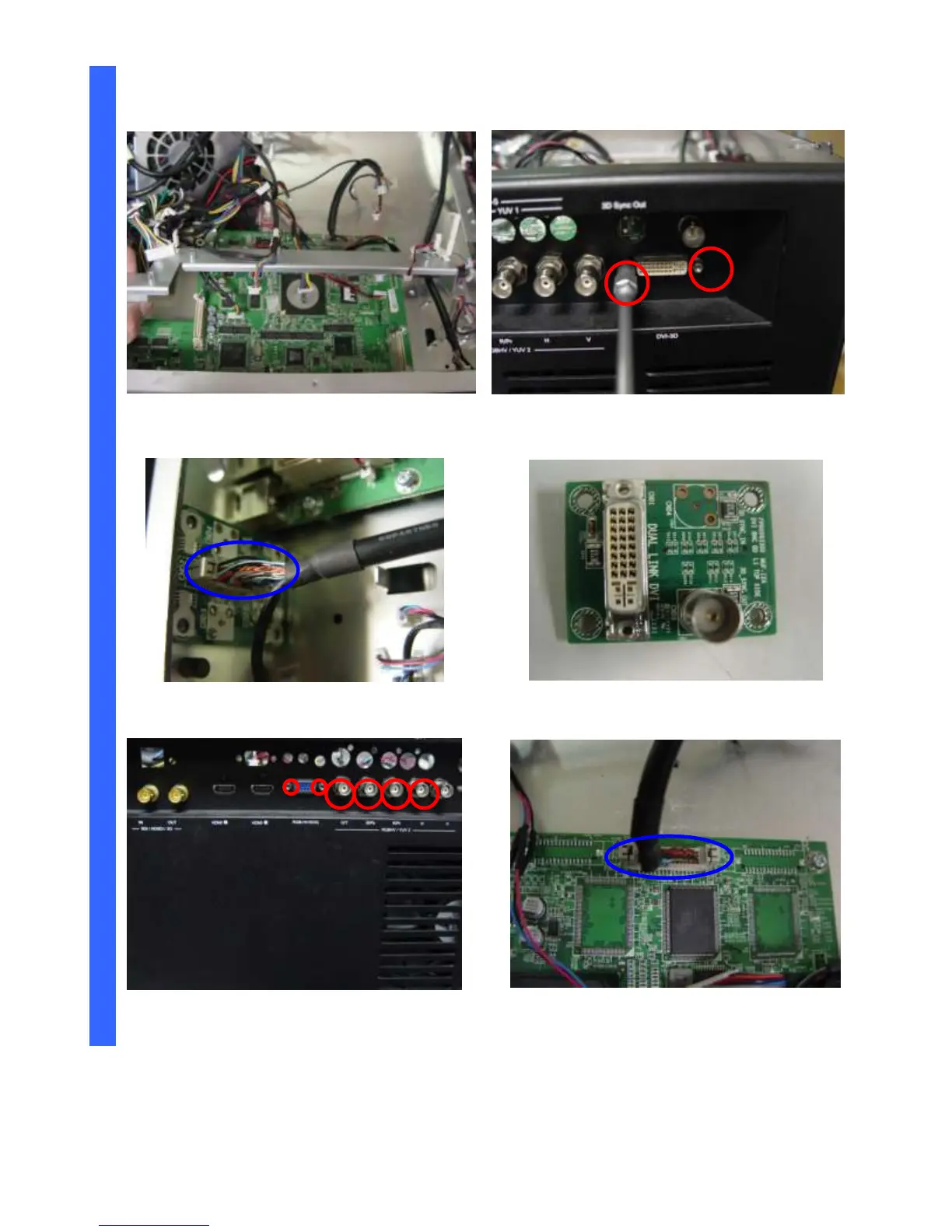

Loosen 1 screw under the right of the brace
of video board.
Loosen 1 screw under the left of the brace of
video board.
Take out the brace.
Loosen 2 screws on the DVI terminal of left
cover.
Unplug 1 connector on the DUAL Link DVI
(3D) board.
Take out the DUAL Link DVI (3D) board.
Loosen 9 screws on the I/O terminal of the
video board on the left cover.
Unplug 1 connector on the video board.
