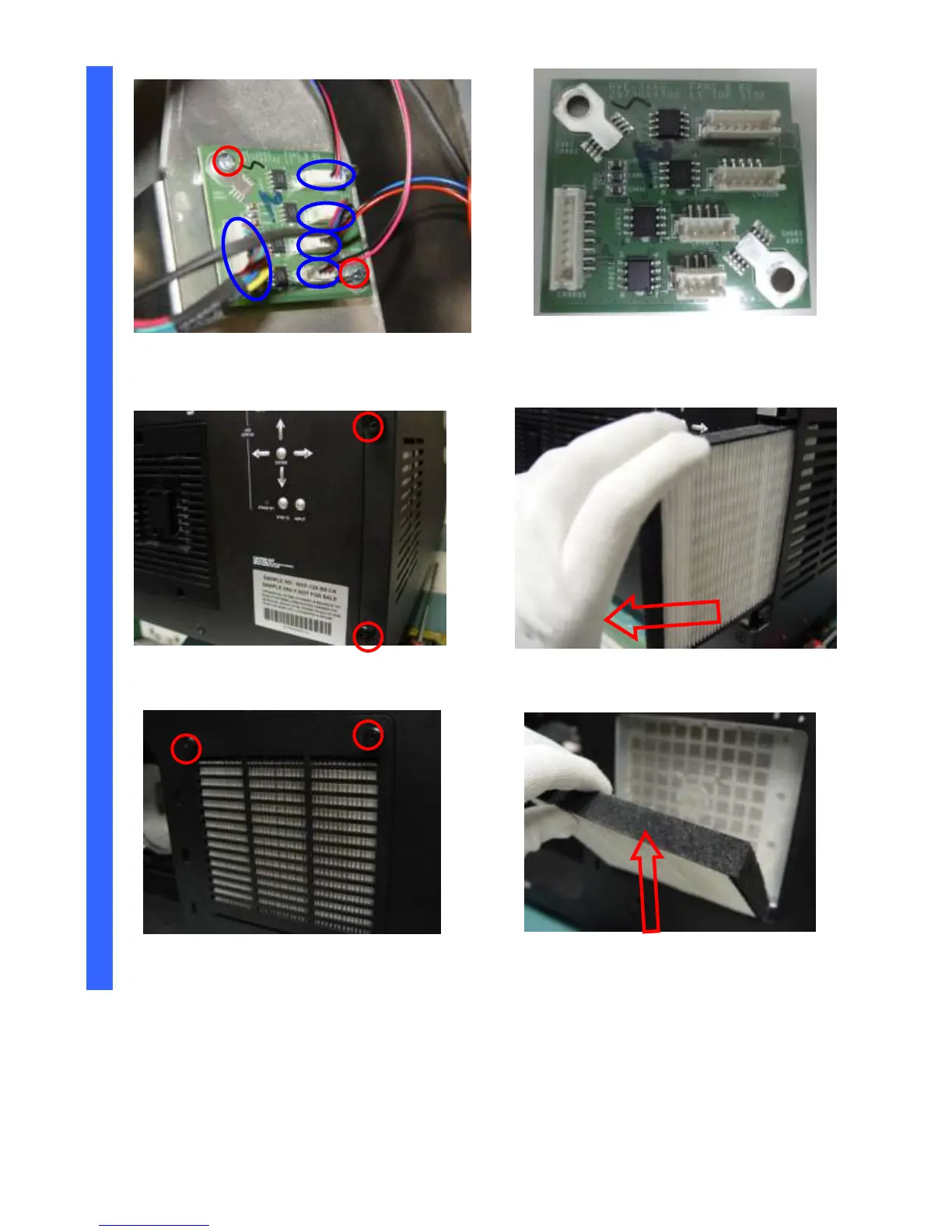

Unplug the 5 connectors, and loosen 2
screws on the Fan B board.
Take out the Fan B board.
Loosen 2 screws on the ventilation slot of rear
cover. Then, open the cover.
Take out the filter.
Loosen 2 screws on the ventilation slot of
front cover. Then, open the cover.
Take out the filter.
