Barco RLM W12

47 of 123

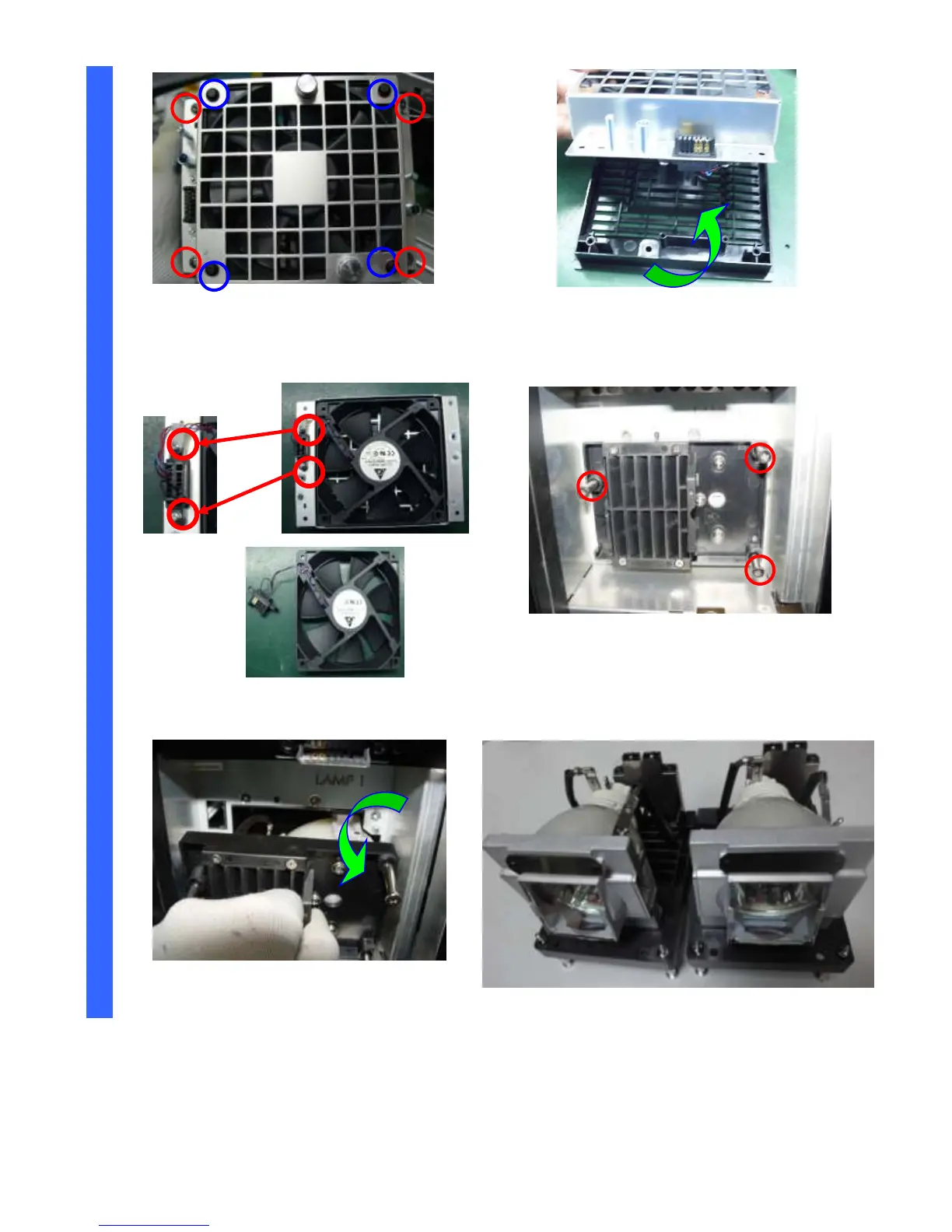

Take out the Fan 2 module. And, loosen 4
screws on it and open the cover, then
loosen 4 plastic pin.
Open Fan 2 module.
Loosen 2 screws on the Fan 2, and then
take off Fan 2.
Loosen 3 screws on Lamp 1 module.
Take out the Lamp 1 module.
Take off the Lamp1 & Lamp 2 module.
