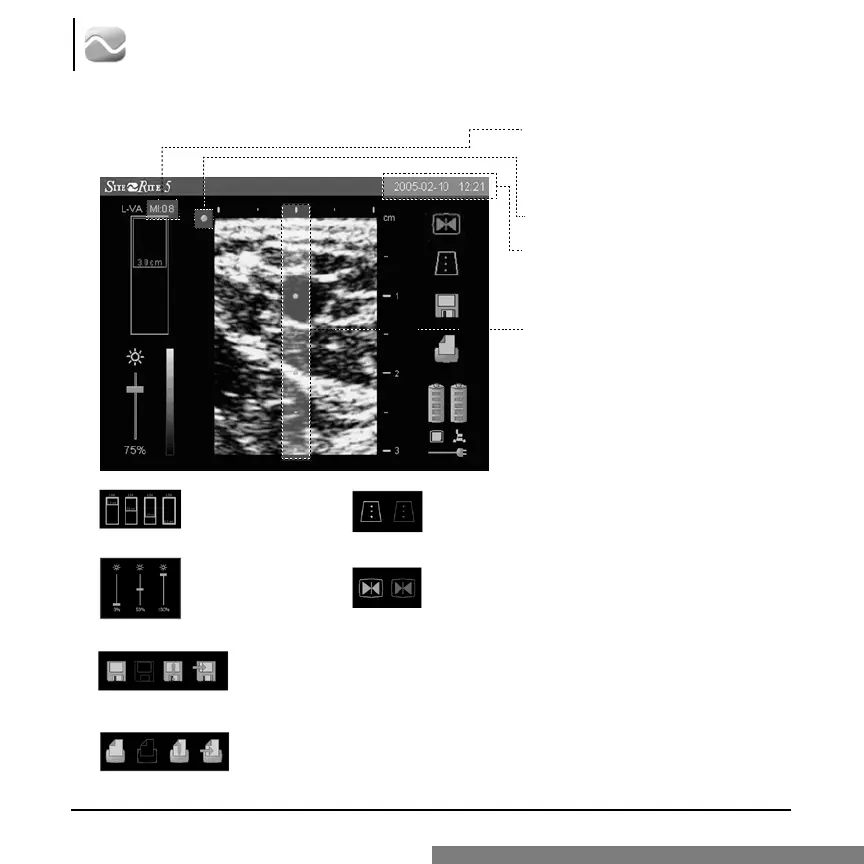

3.2 Display Screen Information
Probe Depth Indicator
Indicates current
image depth.
Time and Date
The time is shown in 24 hour “00:00:”
format and the date may be displayed in
MM/DD/YY or DD.MM.YY format.
Image Depth Markers
When enabled, the depth markers are
shown as green dots superimposed on
the image at 1.0 cm pitch with smaller
dash marks at 0.5 cm.
Gain Indicator
Shows gain levels
from 0-100%.
Run/Freeze Indicator
When the system is in freeze mode, the indicator is shown
in red and blinks briefly every second.
Depth Marker Indicator
When depth markers are enabled, the indicator is highlighted in
light green.
Storage Device Indicator
When a storage device is connected, the indicator icon is shown in solid grayscale. When
the storage device is full or has errors, the indicator is displayed with a red “!” overlay.
Printer Indicator
When a printer is connected, the indicator is shown in solid grayscale. If the printer has an
error condition, the indicator is displayed with a red “!” overlay.
Probe Orientation Marker
Mechanical Index
The mechanical index is shown in
increments of 0.1 with an accuracy
of +/- 0.09.
