Bard Site-Rite 5 - Power Supply Specifications

33
Instructions For Use
9.5 Power Supply Specifications

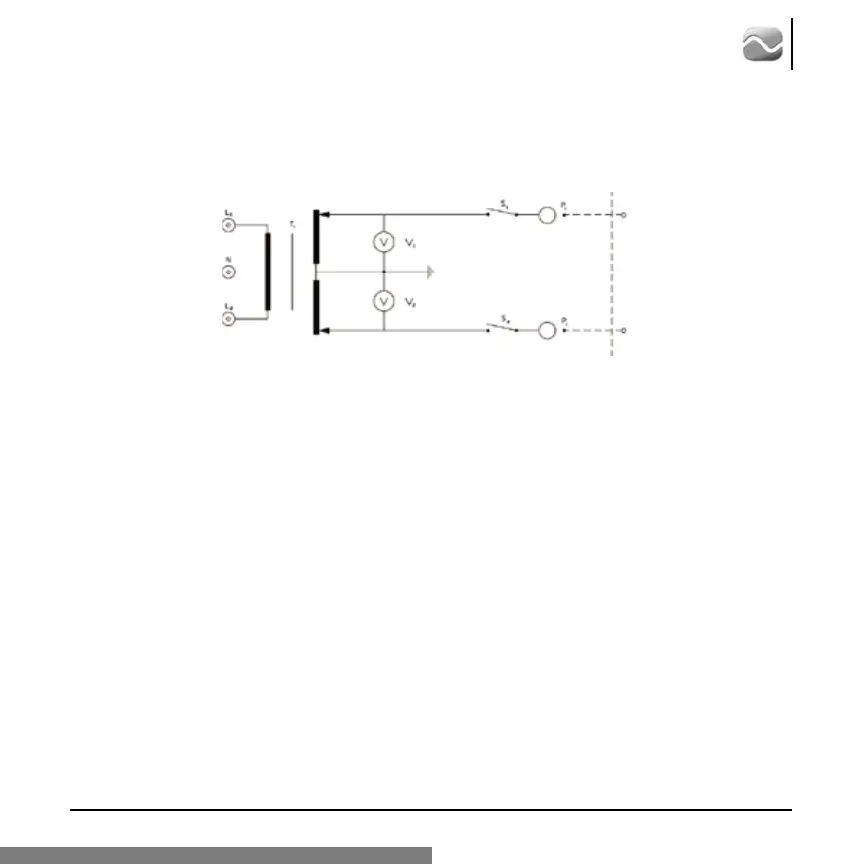

Note: For 240 V applications use only center tapped 240 VAC single phase power as shown below.
A/C Adapter Specifications
Input Voltage: 100-240 VAC, 50/60 Hz.
Input Current (Max): 1 Amp
Internal Battery Pack Specifications
Battery Chemistry: Lithium Ion
Nominal Output Voltage: 10.8 VDC
Output Current (Max):
6 Amps
Combination A/C Adapter Auxiliary Battery Specifications
Input Voltage: 100-240 VAC, 50/60 Hz.
Input Current (Max): 1 Amp
A/C Adapter Output Voltage: 15 VDC
A/C Adapter Output Current (Max): 7 Amps
Nominal Battery Output Voltage:
10.8 VDC
Output Voltage: 15 VDC
Output Current (Max): 6 Amps
Output Power (Full Charge): 52 Wh
System Run Time on Full Charge: 1.0 Hours
Charge Time (Full): 1.75 Hours
Battery Output Current (Max): 6 Amps
Battery Chemistry: Lithium Ion
Output Power (Full Charge): 95 Wh
System Run Time on Full Charge: 2.5 Hours
Battery Charge Time (Full): 3 Hours
