Bard Site-Rite 5 - Assembling the Roll Stand

16
Site~Rite
*
5
Ultrasound System

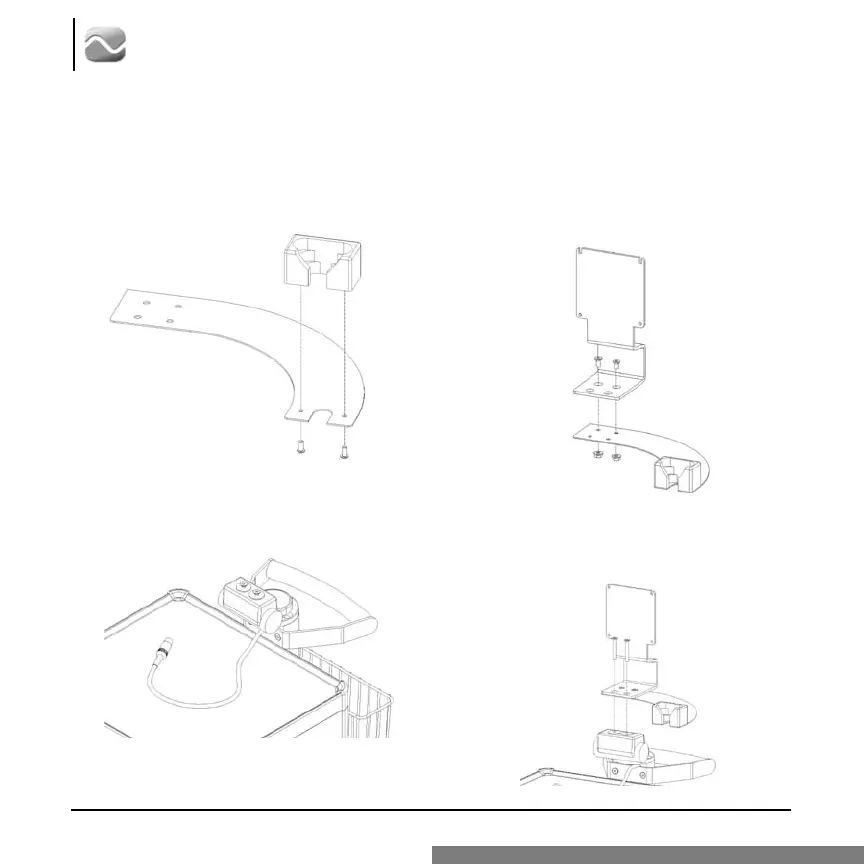

2.2 Assembling the Roll Stand
Step 1:
Attach probe holder to probe arm as shown.
Step 2:
Attach Probe Arm to monitor mounting
plate using rear two holes only as shown.
Step 4:
Using two screws removed in Step 3 mount
Monitor Plate and Probe Arm assembly to
Swivel Mount assembly as shown.
Step 3:
Remove two screws from Swivel Mount
assembly as shown.
