2.4.5. Battery
In the DMS, an internal battery is present, in order to guarantee about 40 hours of autonomy. It is a
12 V battery, 12 Ah.
2.4.6. ST connectors
In the case the standard FO version is ordered, then a cable with ST connectors is connected to
the point 6 in Figure 2.4.1.

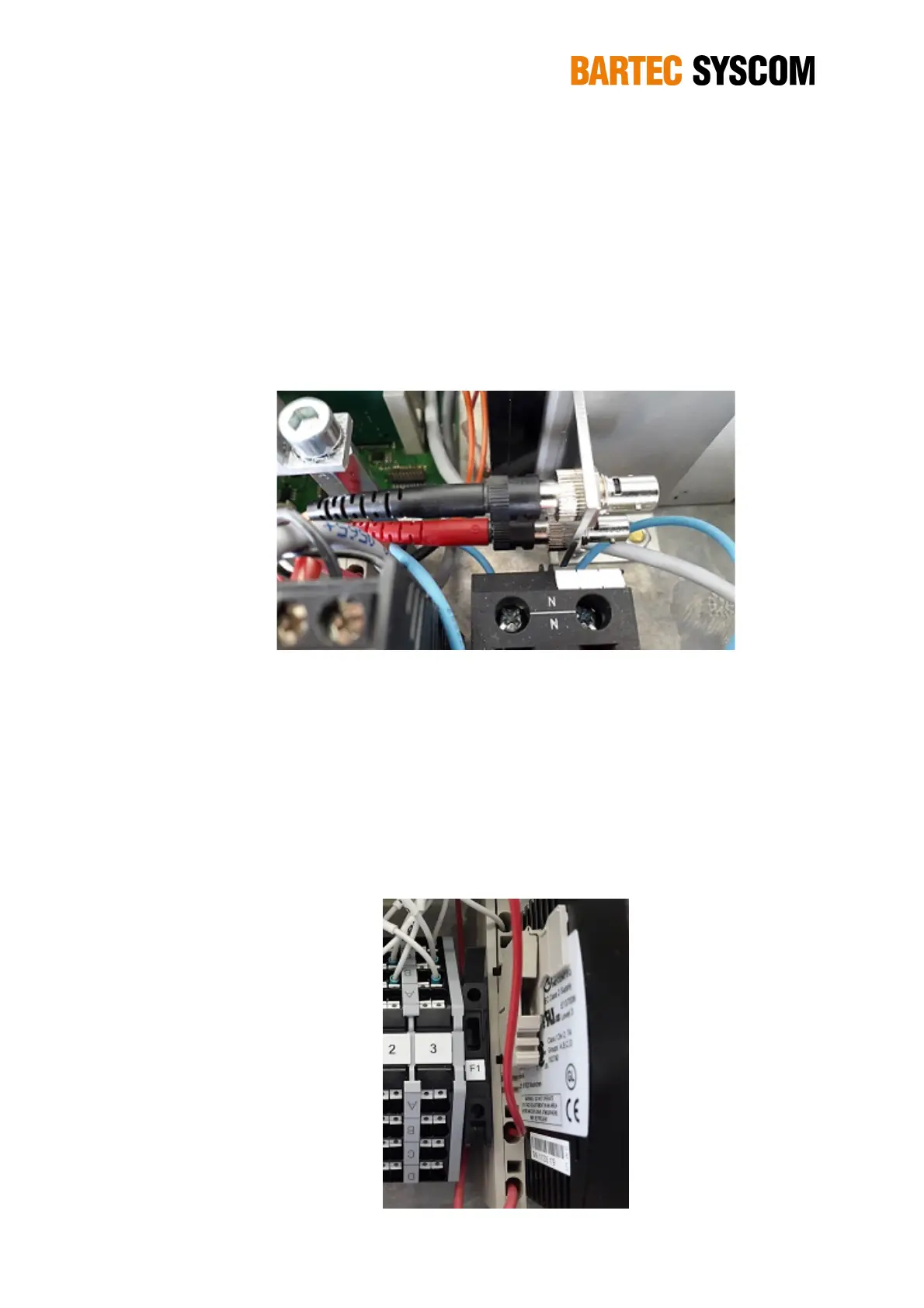

Figure 2.4.6. St connectors in case of FO kit.
2.4.7. Device switch
Between the relay terminals and the AC/DC converter, a fuse can be used simply to turn on and
turn off the MR3000DMS. It is indicated with F1. It is a 1.6 AT /250 V fuse, with dimensions 5×20
mm.
When you open the MR3000DMS for the first time, you have to put it back in place, because it is
provided as opened, such that the DMS is not powered.
Figure 2.4.7. Device switch.
